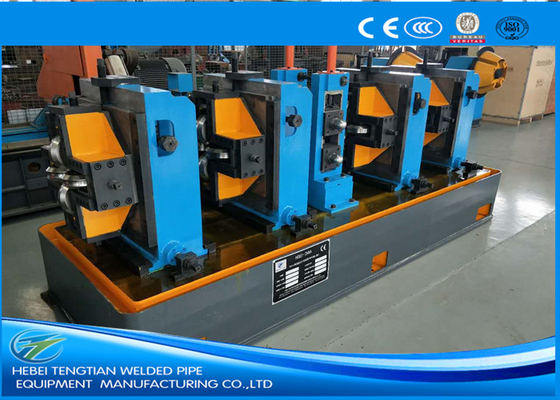

High Frequency Welded Pipe Mill Cold Rolled Coil SS Tube Mill Machine
Product Specifications
| Attribute |
Value |
| Adjusting |
worm gearing |
| Running speed |
Max.120m/min |
| Pipe shape |
Round, Square & Rectangular |
| Pipe Diameter |
16 - 50.8mm |
| Max.Thickness for Square Pipe |
0.6-2.0mm |
| Welding Type |
High Frequency Welding |
| Cutting Saw |
Friction Saw Cutting |
| Max.Thickness for Round Pipe |
0.6-3.0mm |

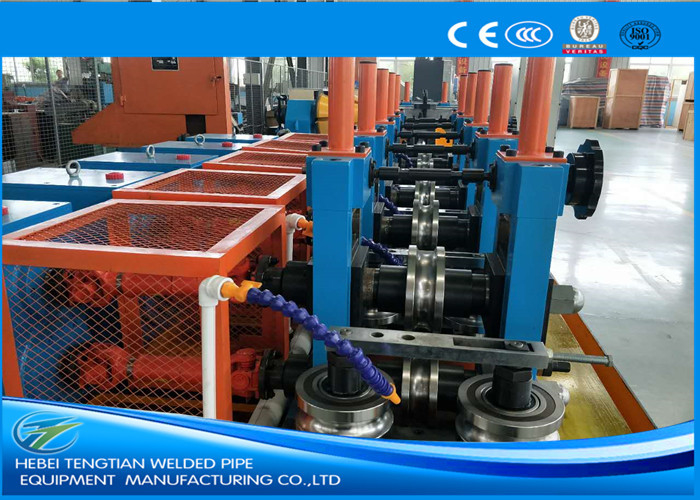

HG50 High Speed High Precision ERW Tube Mill Line
This high-speed ERW Tube Mill Line produces pipes with diameters of 16-50.8mm and maximum thickness of 3mm, widely used for building materials, drainage systems, energy supply pipes, and various profiles including building, decoration, extruded, and cold bending applications.
Key Advantages
- High precision: Level roller jumps 0.01, frame/slide clearance ≤0.02, frame vertical degree ≤0.05, frame parallel degree ≤0.1, pipe diameter/roundness error ≤0.08
- Incorporates Japanese technology for high accuracy requirements
- Schedulable worm gear adjustment with high precision and energy efficiency
- 3D adjustable scraping scar with ±20° rotation capability
- Turkish head push square system reduces mold weight while ensuring stable forming and uniform R angles
- Nylon damping blocks on level up shafts reduce impact on shafts and bearings
Production Process
- Scroll up
- Uncoil
- Flattening
- End Shear & Butt Welding
- Accumulator
- Forming
- High-frequency induction welding
- Removing external burr
- Cooling
- Sizing
- Cutting
- Checking & Collecting
- Accessing Warehouse
Technical Specifications
Raw Material: HRC, CRC, Galvanised Coil
Production Range:
Round Pipe: 16 - 50.8mm; Thickness: 0.6-3.0mm
Square Pipe: 12*12 - 40*40mm; Thickness: 0.6-2.0mm
H.F. Welder: GGP200Kw Solid State High Frequency Welder
Line Speed: Max. 120m/min
Tube Length: 4-12m
Cutting Accuracy: ±3mm
Total Installation Capacity: 400Kw
As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China, our high-quality, reliable machines with long service life have been exported to nearly 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, and Vietnam.
For more information or inquiries, please don't hesitate to contact us. We're happy to assist you.
