High Precision Seamless Pipe Mill , Friction Saw Cutting Pipe Tube Mill Custom

High Precision Seamless Pipe Mill , Friction Saw Cutting Pipe Tube Mill Custom
High Precision Seamless Pipe Mill , Friction Saw Cutting Pipe Tube Mill Custom High Precision Seamless Pipe Mill , Friction Saw Cutting Pipe Tube Mill Custom

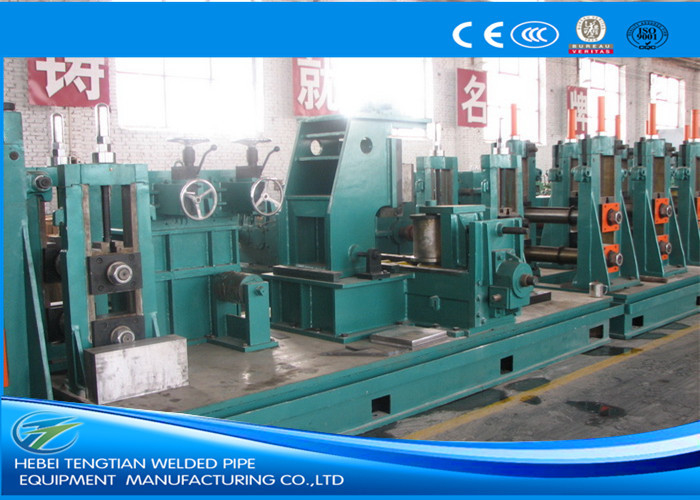

Large Image :  High Precision Seamless Pipe Mill , Friction Saw Cutting Pipe Tube Mill Custom

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: ERW219
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 3 months
Payment Terms: L/C, T/T
Supply Ability: 50 Sets/Year
Detailed Product Description
Material: Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel Adjusting: Worm Gearing
Pipe Shape: Round, Square & Rectangular Max.Thickness For Round Pipe: 2.0 - 8.0mm
Welding Type: High Frequency Welding Cutting Saw: Friction Saw Cutting
Max.Thickness For Square Pipe: 2.0 - 6.0mm Square Pipe: 70*70 - 170*170mm
High Light:

stainless tube mills

,

slitting line machine



ERW219*8mm high precision ERW pipe mill machine max.8 inch



ERW219 high frequency straight welded pipe production line is used to manufacture welded steel pipe of Φ89mm-Φ219mm with 2.0mm-8.0mm of wall thickness, can produce profiled pipe also within the limit of processing round pipe. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.





I. Brief introduction:

89mm welded pipe production line is designed to produce welded pipes of 32mm-89mm in OD and 1mm-4.5mm in wall thickness, as well as corresponding square and rectangle tube.



II. Basic Technical Information:

1.Specification of pipes

Pipe OD: 32mm-89mm Thickness: 1mm-4.5mm

Square tube: 25mm×25mm 70mm×70mm, Thickness: 1mm-3.0mm

Length: 6 -12m Length Tolerance: ±3mm

2.Raw Material:

Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80

3. Tube mill

Production Speed : 20-60m/min

Direction : left to right or right to left from operator`s side decided by customers.



III. The technical flow of the production line

Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing



IV. Makeup of tube mill line

1. Double-reel Mechanical Uncoiler

2. Shear & Butt Welder

3. Cage Loop(Accumulator)

4. Tube mill

5. Solid State H.F. welder

6. NC Flying Saw

7. Output Rollway

8. Rollers

High Precision Seamless Pipe Mill , Friction Saw Cutting Pipe Tube Mill Custom 0
