High Yield Steel Pipe Manufacturing Machine 1.6-3.5mm Thickness

Name: High Yield Steel Pipe Manufacturing Machine 1.6-3.5mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG89
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001
Model Number:	HG89

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001

Model Number:

HG89

Product Name:

Stable Performance Steel Pipe Manufacturing Machine For High Yield

Thickness Range:

1.6-3.5mm

After Sales Service:

Engineers Available To Service Overseas

Speed:

100m/min

Material:

HRC Or CRC

Keyword:

Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

Stable Performance metal pipe making machine

Stable Performance steel pipe making machine

High Yield steel tube forming machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

90 working days

Payment Terms:

T/T,L/C

Supply Ability:

20 Sets / Year

Product Description

Stable Performance High Yield Steel Pipe Making Machine

Product Specifications

Attribute	Value
Product Name	Stable Performance Steel Pipe Manufacturing Machine for High Yield
Thickness Range	1.6-3.5mm
After sales service	Engineers available to service overseas
Speed	100m/min
Material	HRC or CRC

Product Description

This high-performance steel pipe manufacturing machine is designed to produce round, square, and rectangular pipes according to customer specifications. The system produces straight welded pipes using high-frequency solid-state welding technology (such as Thermatool welders) from steel strip or coil materials.

Production Capabilities

Round Pipe Diameter	ø32-ø89mm
Pipe Thickness Range	0.8 - 3.5mm
Square/Rectangular Pipe Size	25X25 - 70X70mm
Pipe Length	6-12m
Length Tolerance	0-5mm

Material Specifications

Material	Carbon steel (δb≤500Mpa, δs≤235Mpa)
Inner Diameter	Φ470-Φ510mm
Outer Diameter	Φmax=1800mm
Strip Steel Width	140mm-4000mm
Strip Steel Thickness	0.8mm-3.5mm
Maximum Weight	4.0 tons
Electric Installed Capacity	Approx. 500KW
Line Speed	1.5m³/h

Production Process

{SteelTape} → Double-head un-coiler → Strip-head Cutter and welder → Spiral accumulator → Forming section (Flattening unit + Main driving unit + Forming unit + Guide unit + High frequency induction welding unit + squeeze roller) → De-burr frame → Cooling unit → Sizing unit and straightener → Cold saw under computer-control → Run-out table → Semi-auto Packing machine

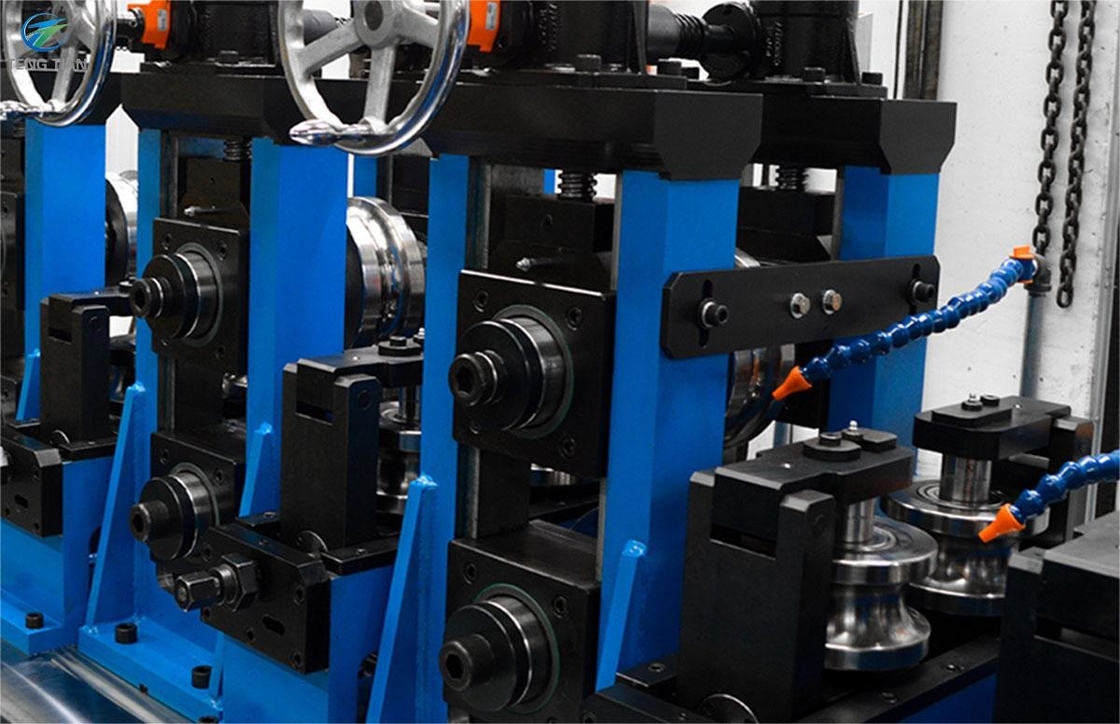

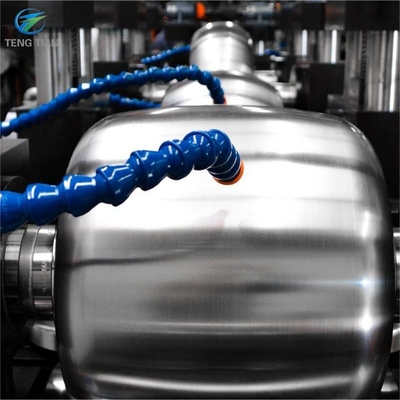

Reference Image
