Precision Tube Mill Machine for Round Square Rectangular Pipes 25-76mm

Name: Precision Tube Mill Machine for Round Square Rectangular Pipes 25-76mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG63
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG63

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG63

Product Name:

Precision Tube Mill Round Shape Tube Mill Machine , ERW Tube Mill ISO9001 100m / Min Mill Speed

Adjustment Type:

By Turbine Worm

Mill Speed:

30-100m/min

Pipe Shape:

Round,square,rectangular

Pipe Diameter:

25-76mm

Thickness:

1.0-3.0mm

Welding Type:

High Frequency Welding

Cutting Saw:

Cold Saw & Friction Saw Cutting

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Precision Tube Mill Round Shape Tube Mill Machine, ERW Tube Mill ISO9001 100m/Min Mill Speed

Product Overview

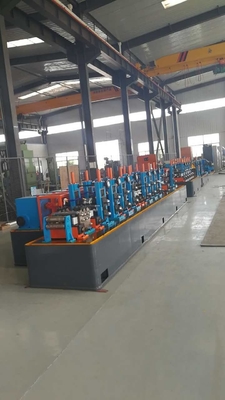

The HG63 ERW pipe making machine is a high precision tube mill line used to produce building materials pipes, widely applied in construction, drainage, energy supply, and various profile applications.

Key Features

High precision: Level roller jumps ≤0.01mm, frame verticality ≤0.05mm, pipe diameter and roundness error ≤0.08mm
Incorporates Japanese technology for superior accuracy
Worm gear adjustment system for precise control
3D adjustable scraping system with ±20° rotation capability
Turkish head push square system for stable forming and uniform R angles
Nylon damping blocks reduce impact on shafts and bearings

Technical Specifications

Attribute	Value
Adjustment Type	By turbine worm
Mill Speed	30-100m/min
Pipe Shapes	Round, square, rectangular
Pipe Diameter (Round)	25-76mm
Thickness Range	1.0-3.0mm
Welding Type	High Frequency Welding
Cutting Saw	Cold Saw & Friction Saw Cutting

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Additional Specifications

Raw Material: HRC, CRC, Galvanised Coil

Production Range:

Round Pipe: 25-76mm diameter, 1.0-4.0mm thickness
Square Pipe: 20*20-60*60mm, 1.0-3.0mm thickness
Rectangular: 20*40-40*80mm, 1.0-2.5mm thickness

H.F. Welder: GGP250Kw Solid State

Line Speed: Max. 100m/min

Tube Length: 4-12m

Cutting Accuracy: ±3mm
