Product Details:
Payment & Shipping Terms:
|
| Material: | Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel | Adjusting: | Worm Gearing |
|---|---|---|---|
| Running Speed: | Max.60m/min | Pipe Shape: | Round, Square & Rectangular |
| Pipe Diameter: | 16 - 50mm | Max.Thickness For Round Pipe: | 0.8- 3.0mm |
| Welding Type: | High Frequency Welding | Cutting Saw: | Friction Saw Cutting |
| Square Pipe: | 12*12 - 40*40mm | Name: | Tube Mill Machine |
| Highlight: | carbon steel tube mill,tube making machine |
||

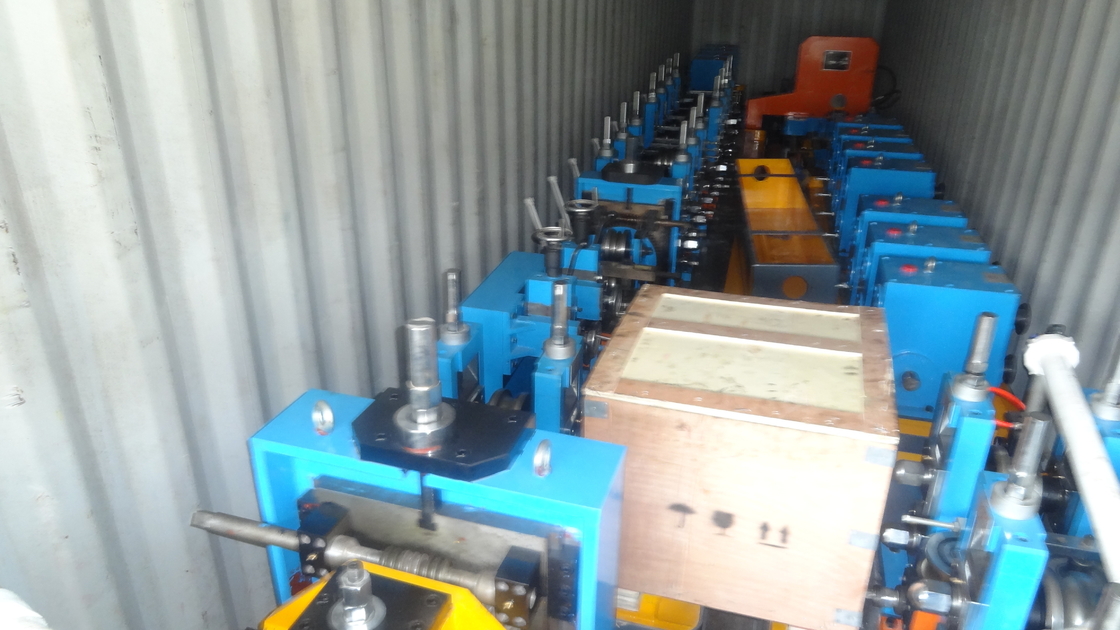

High speed High frequency tube mill machine max.50mm with 3.0mm thickness
High speed High frequency tube mill machine max.50mm with 3.0mm thickness is used to manufacture welded steel pipe of Φ16mm-Φ50mm with 0.8mm-3.0mm of wall thickness, can produce profiled pipe also within the limit of processing round pipe. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Product advantage:
Production Process
Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse
Specifications:
1. Raw Material
| 1 | Mateairal applcaition | Hot or cold rolled steel strips, galvanzied steel strips |
| 2 | Material grade | Low-carbon steel, low alloy steel: δs≤345Mpa |
| 3 | ID of the steel strips | Φ450-Φ508mm |
| 4 | OD of the steel strips | Φ800-Φ2000mm |
| 5 | Coiler weight | Max.2000kg |
2. Production Range:
| Round Pipe | 16 - 50mm | Thickness: 0.8-3.0mm |
| Square Pipe | 12*12 - 40*40mm | Thickness:.8.0-2.0mm |
| Rectangular Pipe | 10*20 - 30*50mm |
Thickness: 0.8-2.0mm |
3. H.F. Welder: GGP200Kw Solid State High Frequency Welder
4. Line Spees: Max. 100m/min
5. Tube Length: 4-12m
6. Cutting Accuracy: ±1mm
7. Electric installed capacity: appro. 400KW
8. Size of whole line: about 90X8m
As an CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China. Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other over 30 countries.
If you have any interested here, please don't hesitate, we are here happy to assist you.
