Steel Tube Making Machine
>

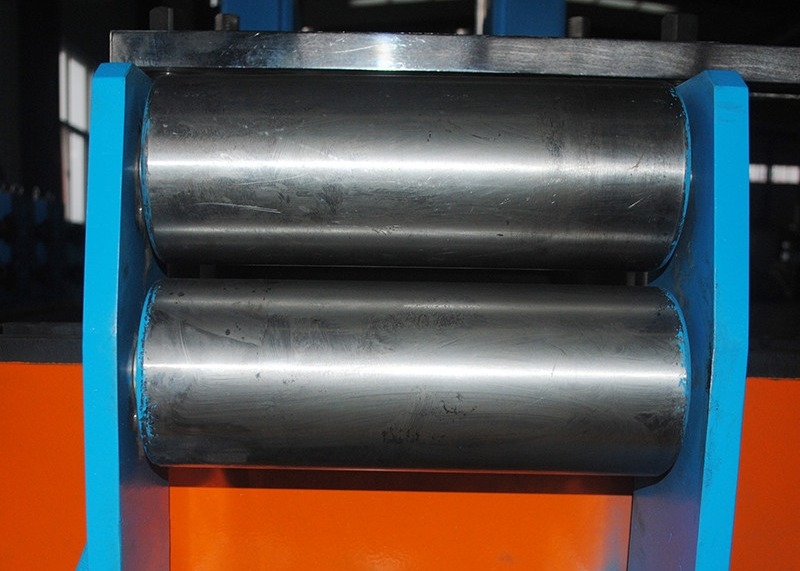

Automatic Steel Tube Making Machine 200KW Roll Forming Mill
Automatic Steel Tube Making Machine 200KW Roll Forming Mill
  • Automatic Steel Tube Making Machine 200KW Roll Forming Mill
  • Automatic Steel Tube Making Machine 200KW Roll Forming Mill
  • Automatic Steel Tube Making Machine 200KW Roll Forming Mill
  • Automatic Steel Tube Making Machine 200KW Roll Forming Mill

Automatic Steel Tube Making Machine 200KW Roll Forming Mill

Product Details:
Place of Origin: Shijaizhuang
Brand Name: hebeitengtian
Certification: CE
Model Number: LW300
Detail Information
Place of Origin:
Shijaizhuang
Brand Name:
hebeitengtian
Certification:
CE
Model Number:
LW300
Product Name:
Automatic Pipe Paking Machine Steel Tube Making Machine 200KW Roll Forming Tube Mill
Applicable Materials:
HG60
Equipment Specification:
Customer Specified
Product Speed:
Max 100m / Min
Cut Off Error:
± 2mm
Floor Area:
60x12 M
Power:
200KW
Shape:
Round Square Rec.
Highlight:

High Light

Highlight:

automatic steel tube making machine

,

Roll Forming steel tube making machine

,

Roll Forming steel pipe making machine

Trading Information
Minimum Order Quantity:
1
Price:
$100000 to $1 million
Packaging Details:
container
Delivery Time:
1month
Payment Terms:
L/C,T/T
Supply Ability:
1
Product Description
Automatic Steel Tube Making Machine 200KW Roll Forming Tube Mill
Product Specifications
Attribute Value
Product Name Automatic Pipe Packing Machine Steel Tube Making Machine 200KW Roll Forming Tube Mill
Applicable Materials HG60
Equipment Specification Customer Specified
Product Speed Max 100m / Min
Cut off error ± 2mm
Floor Area 60x12 M
Power 200KW
Shape Round Square Rec.
Production Process
1 Uncoiler
2 Straight head
3 Pinch leveling machine
4 Shear welder
5 Horizontal accumulator
6 7 Sets Roll Forming Sets
7 Cutter saw
8 Roller conveyer finished product
9 Auto stacking machine
10 Electric control cabinet
Product Overview

The automatic pipe packing machine Steel Tube Making Machine features a rational design structure with touch screen man-machine interface and PLC digital program control. It offers high automation, smooth process flow, excellent product quality, stable mechanical performance, high yield, and labor/time savings with precise overall linkage.

Feeding Device

Includes frame, electric motor, brake unit, circling direction transfer power axle of the reduce velocity, press & carry roll, pressure air system of guide roll, and inspected velocity unit. It supplies strip steel to accumulator while transferring carry velocity information to electric control system. When material feeding needs to stop, it halts roll to the electric motor and press/carry material roll by the break, with adjustable velocity for carry electric motor.

Cold Saw Specifications
Tube thickness 0.9-3.0mm
Tube Length 8-12 M
Speed 80 m/min
Cut length 3m
Cut off error ±0.5mm
Hydraulic station AC11KW
Basic Parameters
Raw Material Conditions Hot rolled or cold rolled steel strip (meet JT/T457-2007,GB345B)
Single cone uncoiler Hydraulic pressure increases and single cone
Thickness of strip 2.0 - 6.0mm
Strip Width 50 - 130mm
Max Coil Weight 3000Kg
Working speed 0-40m / min
Main motor 32kw 1 sets Siemens
We can design the automatic pipe packing machine Steel Tube Making Machine 200KW Roll Forming Tube Mill according to customer requirements. Please contact us with any questions.
Product Images
Automatic Steel Tube Making Machine 200KW Roll Forming Mill 0
Single cone uncoiler
Automatic Steel Tube Making Machine 200KW Roll Forming Mill 1
Shear and welder
Automatic Steel Tube Making Machine 200KW Roll Forming Mill 2
Horizontal spiral accumulator
Automatic Steel Tube Making Machine 200KW Roll Forming Mill 3
