HR Carbon Steel Tube Machine for Round Square Pipe 80m/min

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE
Model Number:	HG

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

Model Number:

Name:

HR Carbon Steel Tube Making Machine For Round Square Pipe

Applicable Materials:

Construction Steel

Forming Method:

Roller Forming Tube Machine

Equipment Specification:

Customer Determined

Cutting Method:

Hydraulic Cutter

Speed:

80 M/min

Warranty:

One Year

Material:

HR Steel

Forming Type:

Direct Forming

Work Shop:

100 X M, H＞3m ( Crane To Ground )

Highlight:

High Light

Highlight:

HR steel tube making machine

Round Carbon steel tube making machine

HR steel pipe making machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

HR Carbon Steel Tube Making Machine for Round Square Pipe

Product Specifications

Attribute	Value
Name	HR Carbon Steel Tube Making Machine for Round Square Pipe
Applicable materials	Construction steel
Forming method	Roller forming tube machine
Equipment Specification	Customer determined
Cutting method	Hydraulic cutter
Speed	80 m/min
Warranty	One year
Material	HR Steel
Forming type	Direct forming
Work shop	100 x m, H＞3m (crane to ground)

Model Specifications

No.	Model	Pipe Size	Thickness	Speed(m/min)	Capacity(KW)	HF(KW)	Area(LxW in Metres)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24

Product Overview

The HR Carbon Steel Tube Making Machine offers adjustable size capabilities and high compressive strength. This versatile equipment is widely used across multiple industries including:

Automotive and railway vehicle manufacturing
Building construction (doors, windows, steel structures)
Transportation infrastructure (highway guardrails, bridges)
Electrical cabinets, shelving, and storage systems
Agricultural machinery and furniture production
Solar panel support structures and greenhouses
Shipbuilding and transmission tower construction
Municipal projects and pipeline supports

Equipment Components

Uncoiler: Features double expansion and cantilever mandrels with pneumatic system for expanding, contracting, and braking operations.

Straightener & Leveler: Prepares coil steel for processing by flattening strip steel heads and tails, ensuring proper alignment for subsequent operations.

Automatic Shear and Welding: Cuts irregular tape sections and welds coil ends together for continuous operation.

Forming and Sizing: Cold-bends steel strip into specified shapes with servo motor adjustment for precise sizing.

Cutting Machine: Hydraulic cutting system with ±1mm accuracy, featuring high-power servo drive and precision linear guide rails.

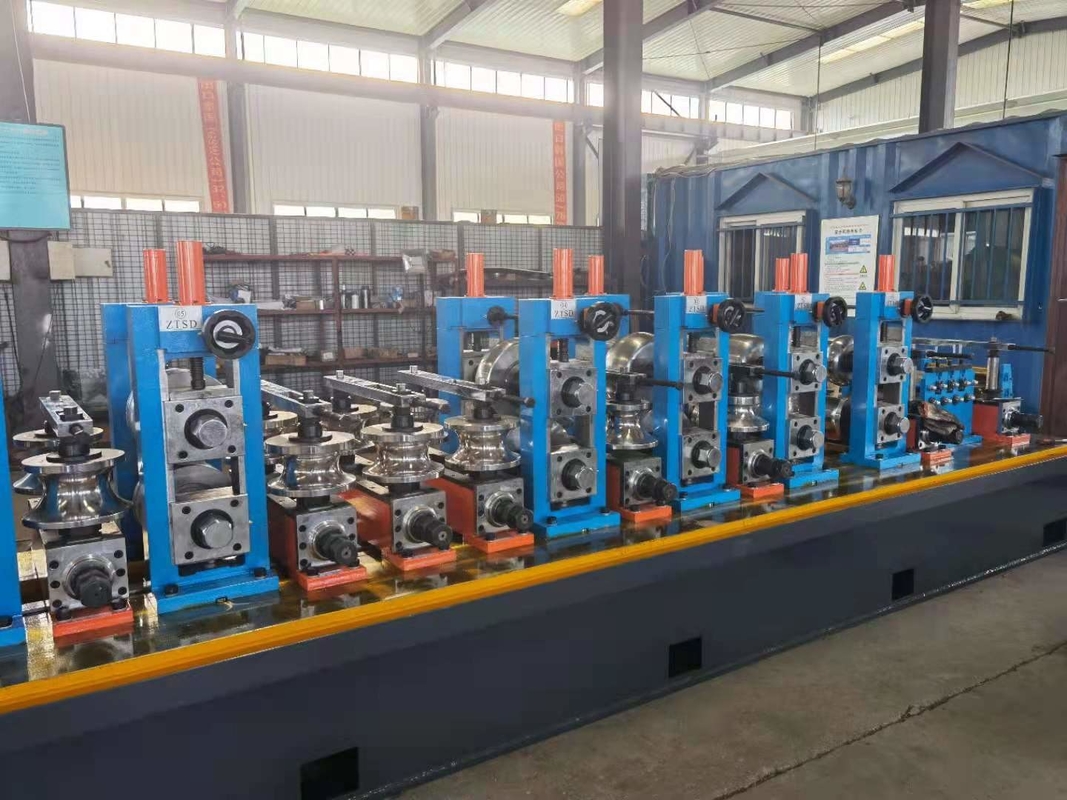

Factory Images
