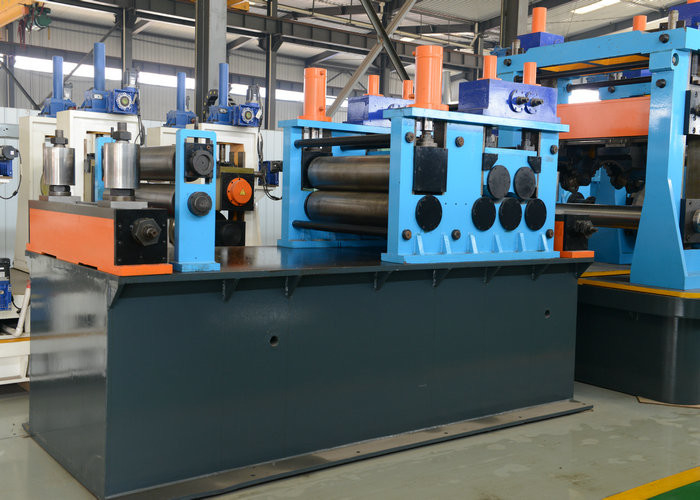

ERW Carbon Steel Tube Mill 114-273mm Diameter 4-10mm Thickness
ERW Carbon Steel Tube Mill 114-273mm Diameter 4-10mm Thickness
  • ERW Carbon Steel Tube Mill 114-273mm Diameter 4-10mm Thickness
  • ERW Carbon Steel Tube Mill 114-273mm Diameter 4-10mm Thickness
  • ERW Carbon Steel Tube Mill 114-273mm Diameter 4-10mm Thickness

ERW Carbon Steel Tube Mill 114-273mm Diameter 4-10mm Thickness

Product Details:
Place of Origin: CHINA
Brand Name: TENGTIAN
Certification: ISO9001/CE/BV
Model Number: HG273
Detail Information
Place of Origin:
CHINA
Brand Name:
TENGTIAN
Certification:
ISO9001/CE/BV
Model Number:
HG273
Product Name:
ERW Carbon Steel Tube Mill For Pipe Making Machine
MOLD:
1SET
Warranty:
1 Year
Pipe Diameter:
114-273mm
Thickness:
4-10mm
Speed:
30-80M/min
Color:
Blue
Material:
Galvanized Steel Coil
Pipe Shape:
Round,square
Keywords:
ERW Carbon Steel Tube Mill
Highlight:

High Light

Highlight:

stainless tube mills

,

slitting line machine

Trading Information
Minimum Order Quantity:
1SET
Price:
$100000 to $1 million
Packaging Details:
Seaworthy packing
Delivery Time:
120 working days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
100sets one year
Product Description
ERW Carbon Steel Tube Mill for Pipe Making Machine
Product Specifications
Model Number HG273
Place of Origin Hebei, China (Mainland)
Pipe Diameter 114-273mm
Pipe Thickness 4-10mm
Molding Speed 15-30m/min
Voltage 380V/220V
Power 1000KW
Certification ISO9001, CE, BV
Pipe Shape Rectangle, Round, Square
Material of Pipe Carbon Steel, Stainless Steel, Galvanized Steel
Warranty 1 Year
The high frequency straight seam welded pipe production line processes steel belt through a feeding unit, forming it into tube billets via rollers. Using high-frequency proximity and skin effects, the strip edges are instantly heated to welding temperature, then welded under pressure from squeezing rollers. The pipe is then water cooled, sized, and straightened to required specifications. This production line combines domestic and international equipment innovations with China's specific conditions, offering convenient operation, simple maintenance, and high precision manufacturing.
Production Process
  • Scroll up
  • Uncoil
  • Flattening
  • End Shear & Butt Welding
  • Accumulator
  • Forming
  • High-frequency induction welding
  • Removing external burr
  • Cooling
  • Sizing
  • Cutting
  • Checking & Collecting
  • Accessing Warehouse
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Molding Speed (m/min) Motor Power (KW) Mechanical Area (m³)
HG20 8-20MM 0.3-1MM 30-120 55 7×50
HG32 12-32MM 0.3-2.0MM 30-120 75 7×50
HG50 16-50MM 0.8-2.5MM 30-110 110 7×60
HG60 20-60MM 0.8-3MM 30-100 132 7×65
HG76 12-76MM 1-3MM 30-100 320 8×80
HG89 32-89MM 1-4MM 30-80 350 8×80
HG114 45-114MM 1.5-5.0MM 30-60 400 10×100
HG165 60-165MM 3-7MM 30-50 600 10×110
HG219 114-219MM 4-8MM 20-40 800 12×150
HG273 114-273MM 4-10MM 15-30 1000 18×160
HG325 165-325MM 4-12MM 10-30 1200 18×180
HG426 165-426MM 4-16MM 8-25 1400 18×180
HG508 219-508MM 4-20MM 8-20 2000 21×180
Our Services
1. Engineer dispatch for machine installation and worker training on proper operation.
2. Warranty Team: One year quality guarantee with lifetime repair service. Free repair parts during warranty period (excluding human error). Only spare part costs charged post-warranty.
3. Comprehensive pre-sales and after-sales services including workshop design, production output planning, installation, training, and skilled engineer support.
4. Optional extended engineer support (several months to 1 year) to improve output, reduce waste, and decrease costs.
5. Pre-sales project design services for complete stainless steel/carbon steel pipe production setups.
6. Full responsibility for loading and shipping arrangements.
