Carbon Steel ERW Pipe Mill for 21-63mm Round Square Rectangular Pipes

Name: Carbon Steel ERW Pipe Mill for 21-63mm Round Square Rectangular Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

Carbon Steel ERW Pipe Mill Manufacturer For 21 - 63mm Pipe Diameter

Material:

Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel

Pipe Shape:

Round, Square & Rectangular

Running Speed:

Max.80m/min

Pipe Diameter:

21 - 63mm

Max.Thickness For Square Pipe:

0.8-3.0mm

Welding Type:

High Frequency Welding

Kaywords:

Carbon Steel ERW Pipe Mill

Highlight:

High Light

Highlight:

erw tube mill

slitting line machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3 months

Payment Terms:

L/C,T/T

Supply Ability:

40 Sets/Year

Product Description

Carbon Steel ERW Pipe Mill Manufacturer for 21 - 63mm Pipe Diameter

Attribute	Value
Product Name	Carbon Steel ERW Pipe Mill manufacturer for 21 - 63mm Pipe Diameter
Material	Hot Rolled Coil, Cold Rolled Coil, Galvanised Steel
Pipe Shape	Round, Square & Rectangular
Running Speed	Max. 80m/min
Pipe Diameter	21 - 63mm
Max. Thickness for Square Pipe	0.8-3.0mm
Welding Type	High Frequency Welding

General Introduction

This production line manufactures High Frequency Induction Welded (HFW) carbon steel tubes through cold forming of carbon steel strip into circular shape, longitudinal welding, and sizing to specified dimensions. The HG60 high frequency straight welded pipe production line produces welded steel pipes of Φ21.3mm-Φ33.7mm with 1.0mm-3.25mm wall thickness, capable of producing profiled pipes of the same size.

Product Process

material(steel coil)->uncoiler->shear and welder->horizontal(or cage) accumulator->forming mill-> HF soild welder->sizing mill->rounghly straightening(turkey head)->cut off machine->run out table

Basic Parameters

Stands of forming mill	8
Stands of sizing mill	6
Shaft material	40Cr
Round pipe diameter	60-165mm
Round pipe thickness	3.0-7.0mm
Square pipe size	50×50-130×130mm
Square pipe thickness	3.0-6.0mm

Machines can be customized according to customer requirements.

Electric Installed Capacity

Approximately 400KW Power supply: 380V, 50Hz (According to Local). The electrical system features Siemens PLC automatic control, Eurotherm DC speed control, and digital display systems for easy operation, simple maintenance, and high reliability.

Machine Features

Large diameter roller shafts made of 42CrMo material
Dual motor configuration for enhanced efficiency
High tube making efficiency with excellent straightness
High reliability with low failure rate
User-friendly operation
Premium quality Shengyang brand computer saw
Top Chinese brand high frequency welder

Application

This Carbon Steel ERW Tube Mill produces stainless steel pipes for decorative applications including furniture, hand railings, household appliances, curtain rails, and more. Capable of manufacturing round, square, rectangular, oval, and other irregular pipe shapes.

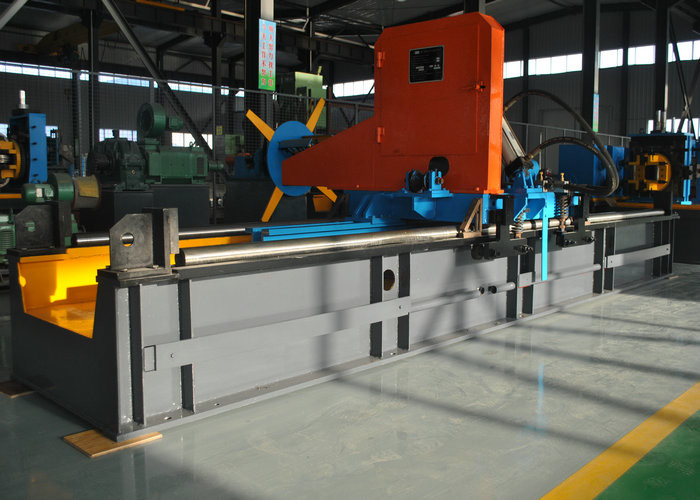

Cold Sawing Cutting

The digitally controlled cold cutting machine features mechanical, electronic, and hydraulic components with three servo motor-driven shafts (tracking, cutting feed, and saw blade rotation) controlled by a specialized motion controller. Parameters are entered via LCD touch screen with real-time monitoring. The high-speed steel saw blades operate synchronously with the production line, with CNC-controlled cutting speed and position accuracy.

Our Services

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair service
Comprehensive pre-sale and after-sale services
Extended engineer support available (months to 1 year)
Complete project design services for pipe production
Responsibility for loading and shipping
