Round Shape Precision Tube Mill Cold Saw Welding 4.0mm Thick CE Certification

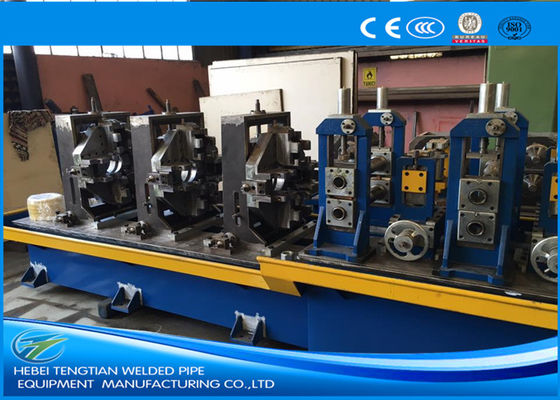

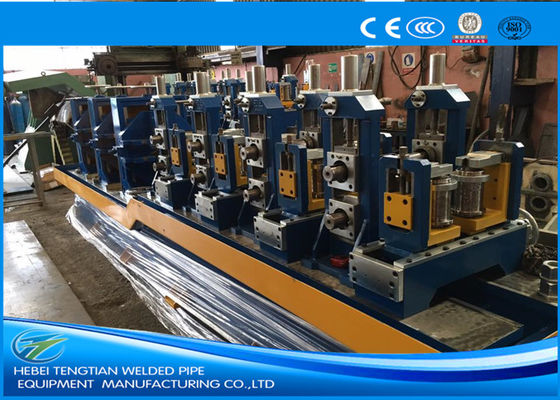

ERW76 High Precision Steel Tube Mill Production Line

High‐frequency welded tube mill line is Designed to produce round tube diameter of 25.4 – 76mm, And wall thickness of 0.8 ‐4.0 mm. This line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape. The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed‐regulating unit ensure that the production line works reliably and operates and maintains easily.

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Specifications:

1. Raw Material: HRC, CRC, Galvanised Coil

2. Production Range:

Round Pipe:  25.4- 76mm;       Thickness: 0.8-4.0mm

Square Pipe: 20*20 - 60*60mm; Thickness: 0.8-3.0mm

Rectangular: 20*30 - 40*80mm; Thickness: 0.8-3.0mm

3. H.F. Welder: GGP300Kw Solid State High Frequency Welder

4. Line Spees: Max. 100m/min

5. Tube Length: 4-12m

6. Cutting Accuracy: ±3mm

7. Total Installation Capacity: 600kw

As an CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China. Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other nearly 30 countries.

If you have any interested here, please don't hesitate, we are here happy to assist you.
