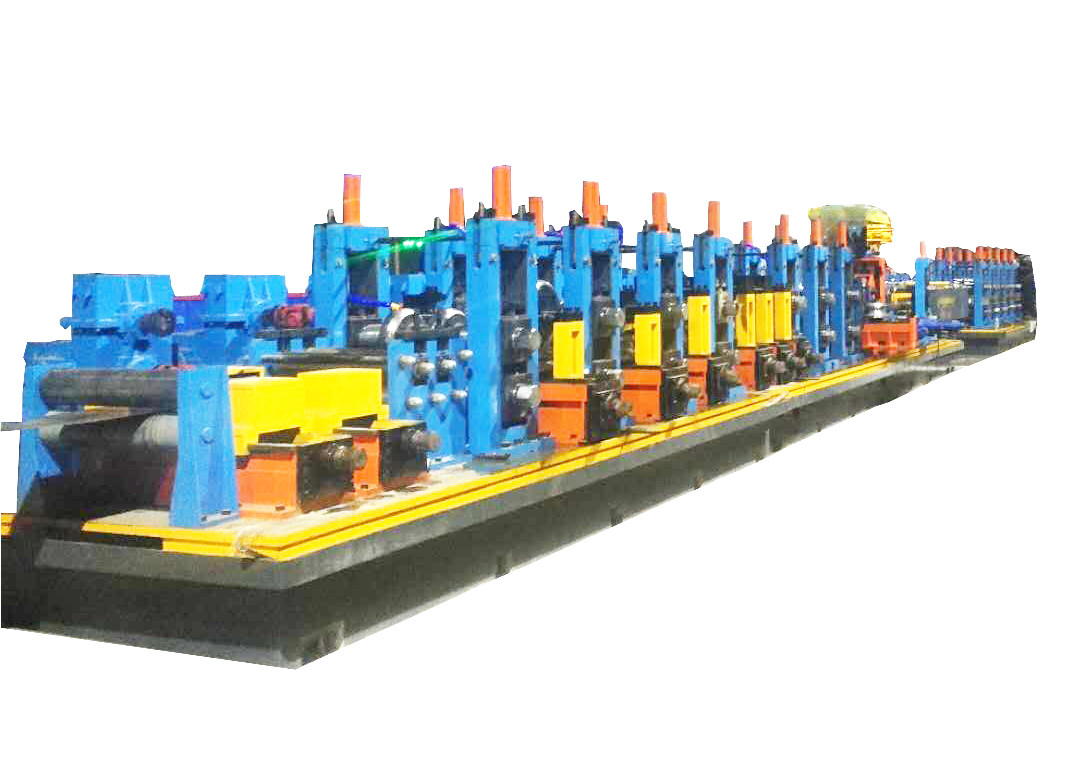

30m/min Steel Pipe Manufacturing Machine for Round Pipe 2-8mm Thickness

Name: 30m/min Steel Pipe Manufacturing Machine for Round Pipe 2-8mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: CTL-(2-8)×1250mm/ 1500mm/2000mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001
Model Number:	CTL-(2-8)×1250mm/ 1500mm/2000mm

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001

Model Number:

CTL-(2-8)×1250mm/ 1500mm/2000mm

Product Name:

30m / Min Steel Pipe Manufacturing Machine Simple Operation For Round Pipe

Thickness Range:

2.0-8.0mm

After Sales Service:

Engineers Available To Service Overseas

Cutting Speed:

0-80m/min

Materiial:

HRC; CRC; GI; PPGI

Keyword:

Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

30m / Min metal pipe making machine

Simple steel pipe making machine

Simple steel tube forming machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

120 working days

Payment Terms:

T/T,L/C

Supply Ability:

20 Sets / Year

Product Description

30m / Min Simple Operation Steel Tube Making Machine For Round Pipe

Product Specifications

Attribute	Value
Product Name	30m / Min Steel Pipe Manufacturing Machine Simple Operation for Round Pipe
Thickness Range	2.0-8.0mm
After sales service	Engineers available to service overseas
Cutting Speed	0-80m/min
Material	HRC; CRC; GI; PPGI

Product Overview

HeBei TengTian, a world-famous brand, has long been recognized as an early pioneer in the welded seam tube mill business in China. The company offers multiple standard tube mills for common product sizes along with specialized equipment covering a wide diameter range of metal tubes and pipes - from 3/16″ (4.76mm) O.D. cold stretch reducing mills to 28″ OD cage mills.

Key Features

High precision pipe making with advanced W, FFX, FF forming methods
German roll forming design for superior performance
Stable operation with high yield and efficiency
Full automation with simple operation
Continuous production capability
Reduced material waste and low production costs

Manufacturing Process

Coils: Carbon steel coils prepared for pipe production
Uncoiler: Steel coil placed on the uncoiler
Leveler: Coil stock is leveled
Butt Welding: Connects coils for continuous forming
Mill: Rolls form flat steel into pipe
Welder: Electric Resistance Welder finishes the pipe
Scarfer: Smooths the seam around the pipe
Saw: Cuts pipe to specified lengths
Collecting: Pipes gathered for packing

Available Models

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16

Product Images
