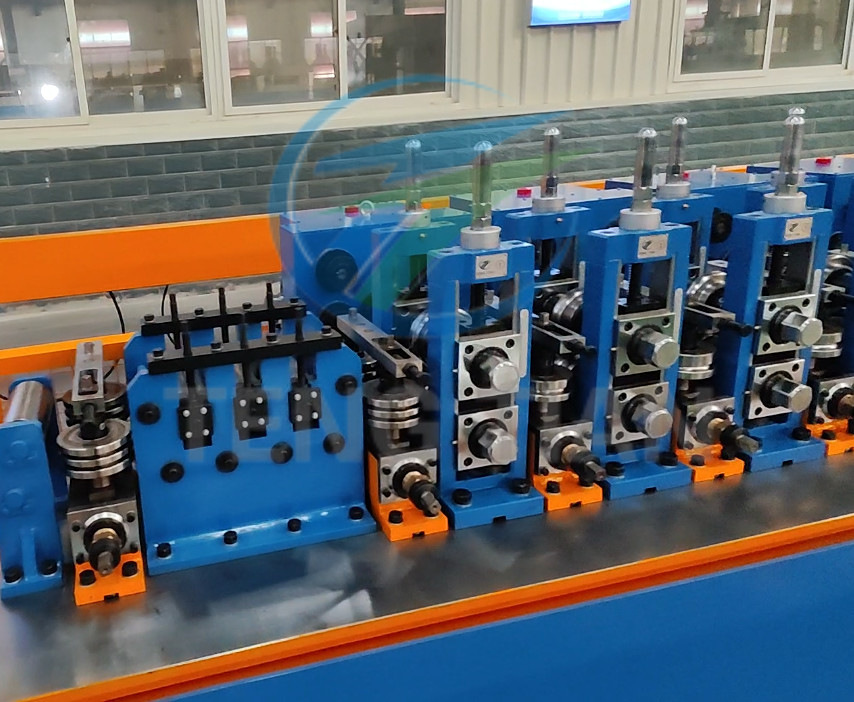

Carbon Steel Pipe Machine for Small Pipes 0.8-4.0mm Thickness

Name: Carbon Steel Pipe Machine for Small Pipes 0.8-4.0mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG42
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001
Model Number:	HG42

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001

Model Number:

HG42

Product Name:

Carbon Steel Pipe Manufacturing Machine For Small Pipe

Thickness Range:

0.8-4.0mm

After Sales Service:

Engineers Available To Service Overseas

Speed:

110m/min

Materiial:

HRC; CRC; GI; PPGI

Keyword:

Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

Carbon metal pipe making machine

Carbon steel pipe making machine

Small steel tube forming machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

180 days

Payment Terms:

T/T,L/C

Supply Ability:

20 Sets / Year

Product Description

Carbon Steel Pipe Manufacturing Machine For Small Pipe

Product Specifications

Attribute	Value
Product Name	Carbon Steel Pipe Manufacturing Machine for small pipe
Thickness Range	0.8-4.0mm
After sales service	Engineers available to service overseas
Speed	110m/min
Material	HRC; CRC; GI; PPGI

Product Description

This Steel Pipe Manufacturing Machine features a hydraulic system with one pre-leveling machine and one fine leveling machine driven by DC or AC motors. Length-fixing is accomplished by encoder with stop-shear cutting style.

The complete system includes:

Coil loading car
Double-mandrel decoiler
Portal-style coil-head guide
Press & shoveling equipment
Pinch-feeding & pre-leveling
Transmit table with side guide
Edge trimmer and scrap winder
Main Leveling machine
Final sheet sending out equipment
Length-fixing encoder
Hydraulic shearing machine
Delivery roll table & plates-sending-out equipment
Pneumatically piling-up table
Hydraulic system
Electric control system

Key Features

Speed up to 20m/min (4-5pcs/min for 2000mm length sheets)
Leveling precision: ±1.5mm/㎡
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±1mm/m
Handles heavy plate coils up to 30T, 35T or 40T with double-cone decoiler
Strong portal-style coil-head opener ensures smooth decoiling
Scientifically calculated leveling roller diameter for optimal performance
Backup rollers prevent deformation during leveling
Dual leveling system for superior results
Optional edge trimmer available
Premium components from leading brands (Mitsubishi PLC, Yuken/Fuxin hydraulic parts, HRB/ZWZ/SKF bearings)

Technical Specifications

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW in Metres)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24
