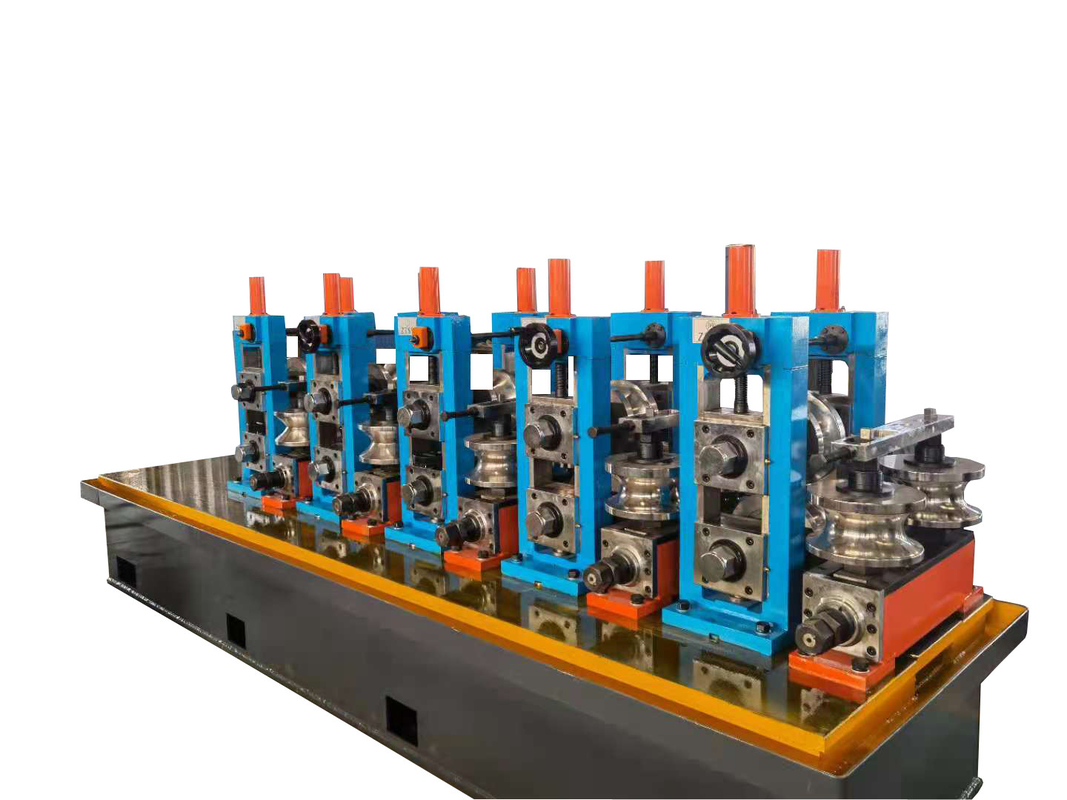

Fast Speed Steel Pipe Manufacturing Machine 0.6-4.0mm Thickness

Name: Fast Speed Steel Pipe Manufacturing Machine 0.6-4.0mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: CTL-1600×4mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001
Model Number:	CTL-1600×4mm

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001

Model Number:

CTL-1600×4mm

Prodcut Name:

Fast Speed Steel Pipe Manufacturing Machine With Flexible Strip Width

Thickness Range:

0.6-4.0mm

After Sales Service:

Engineers Available To Service Overseas

Cutting Speed:

0-80m/min

Materiial:

HRC; CRC; GI; COLOR STEEL

Keyword:

Fast Speed Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

Fast Speed Steel Pipe Manufacturing Machine

Flexible Steel Pipe Manufacturing Machine

Fast Speed Steel Pipe Making Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

90 working days

Payment Terms:

T/T,L/C

Supply Ability:

20 Sets / Year

Product Description

Fast Speed Steel Pipe Manufacturing Machine With Flexible Strip Width

Product Specifications

Attribute	Value
Product Name	Fast Speed Steel Pipe Manufacturing Machine with flexible Strip Width
Thickness Range	0.6-4.0mm
After sales service	Engineers available to service overseas
Cutting Speed	0-80m/min
Material	HRC; CRC; GI; COLOR STEEL

Product Overview

This high-speed Steel Pipe Manufacturing Machine with flexible strip width capability can uncoil and level coil strips, then shear the leveled flat strip to specified sheet lengths at speeds up to 100m/min. Commonly referred to as a Pipe Mill machine, it features servo length-fixing and pneumatically mechanical shearing for precise sheet length accuracy and clean cutting edges.

Machine Components

The complete system includes:

Coil loading car
Single-mandrel decoiler
Coil-head guide
Press & shoveling equipment
Pinch-feeding roller & leveling machine
Hole accumulator
Side guide
Fine leveling & length-fixing machine
Pneumatically mechanical shearing machine
Delivery belt
Piling-up bracket
Up-down lifting table
Moving-out car
Hydraulic system
Electric control system

Key Features and Advantages

High Speed & Precision: Operates at up to 100m/min (25-30pcs/min for 2000mm sheets). Leveling precision: ±1mm/m². Sheet length precision: ±0.5mm/m. Diagonal length precision: ±0.5mm/m.
Optimized Uncoiling: Single mandrel (cantilever) uncoiler design for handling lighter weight coils in high-speed operations.
Precision Leveling: Scientifically calculated leveling roller diameters ensure perfectly flat steel sheets.
Automated Stacking: Automatic piling-up bracket organizes finished sheets efficiently.
Surface Protection: Hole accumulator between leveling stages protects sheet surfaces and ensures synchronized motor operation.

Machine Models and Specifications

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW in Metres)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24
