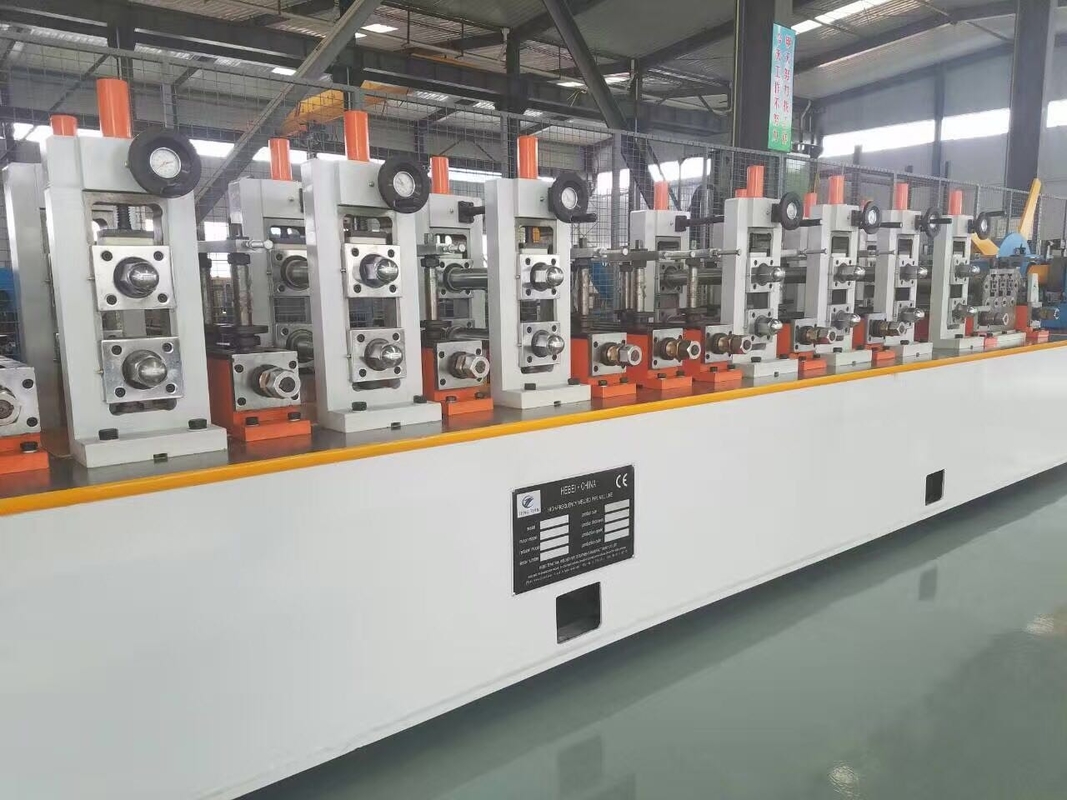

Precision Tube Mill ERW Pipe Machine 25-76mm High Frequency Welding

Name: Precision Tube Mill ERW Pipe Machine 25-76mm High Frequency Welding
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG50

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG50

Product Name:

Precision Tube Mill Heavy Duty ERW Pipe Making Machine , ERW Pipe Machine By Turbine Worm

Adjustment Type:

By Turbine Worm

Mill Speed:

30-100m/min

Pipe Shape:

Round,square,rectangular

Pipe Diameter:

25-76mm

Thickness:

1.0-3.0mm

Cutting Saw:

Cold Saw & Friction Saw Cutting

Welding Type:

High Frequency Welding

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

pipe milling machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Precision Tube Mill Heavy Duty ERW Pipe Making Machine

ERW Pipe Machine By Turbine Worm

Attribute	Value
Product Name	Precision Tube Mill Heavy Duty ERW Pipe Making Machine, ERW Pipe Machine By Turbine Worm
Adjustment type	By turbine worm
Mill speed	30-100m/min
Pipe shape	Round, square, rectangular
Pipe diameter	25-76mm
Thickness	1.0-3.0mm
Cutting Saw	Cold Saw & Friction Saw Cutting
Welding Type	High Frequency Welding

Equipment Description

This high frequency, high precision ERW pipe making machine is designed for producing building materials pipes, widely used for construction materials, drainage systems, energy supply pipes, building and decoration profiles, extruded profiles, and cold bending profiles.

Product precision reaches 0.05mm (HG32/HG50/HG76), with accuracy exceeding 0.08mm for HG76 units.

Technical Specifications

Raw Material: HRC, CRC, Galvanised Coil

Production Range:

Round Pipe: 25-76mm; Thickness: 1.0-4.0mm
Square Pipe: 20*20-60*60mm; Thickness: 1.0-3.0mm
Rectangular: 20*40-40*80mm; Thickness: 1.0-2.5mm

H.F. Welder: GGP250Kw Solid State

Line Speed: Max. 100m/min

Tube Length: 4-12m

Cutting Accuracy: ±3mm

Key Advantages

High precision: Level roller jumps 0.01, frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1, steel pipe diameter and roundness error ≤0.08
Incorporates Japanese technology for high accuracy requirements
Worm gear and worm adjustment system provides precise, energy-efficient operation
3D adjustable scraping scar system with ±20° rotation capability
Turkish head push square system reduces mold weight while maintaining stable forming and uniform R angles
Nylon damping blocks on level up shafts reduce impact on shafts and bearings

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse
