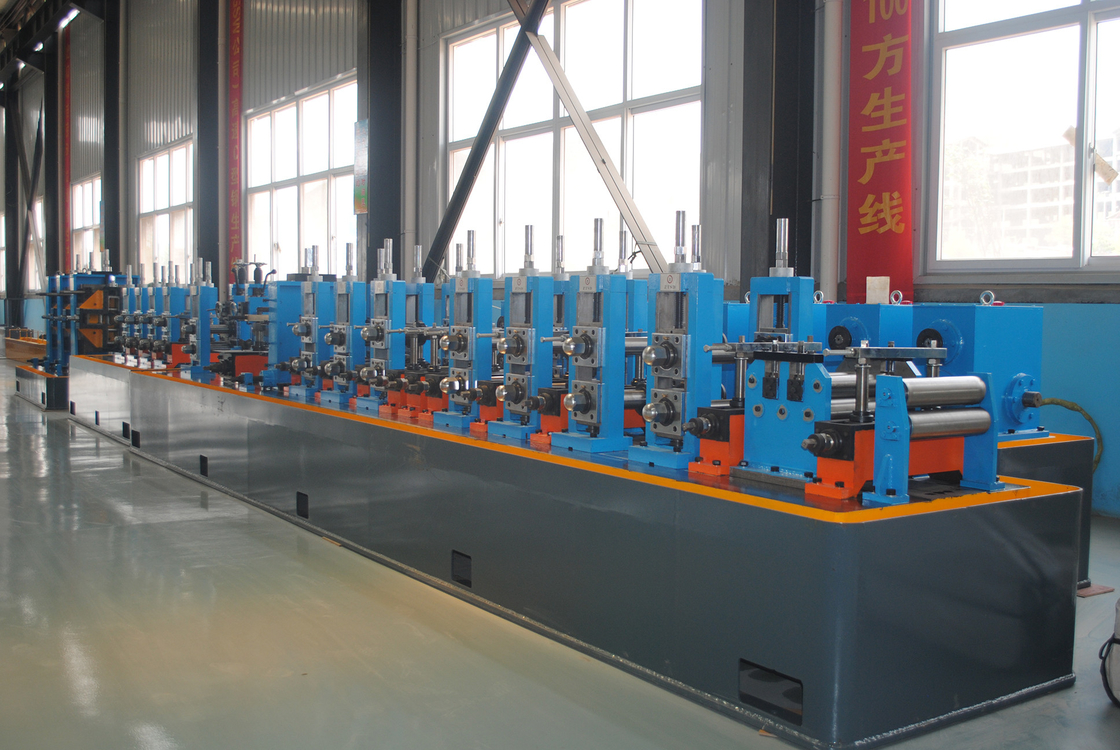

Automatic Tube Mill Machine for Round Square Rectangular Pipes 32-127mm

This automatic high-precision tube mill machine manufactures welded steel pipes from Φ76mm-Φ168mm with wall thickness of 2.0mm-6.0mm, capable of producing profiled pipes within round pipe processing limits. Incorporating advanced domestic and international pipe-making technology, our innovative production line offers both economical and practical solutions.

• High precision: Level roller jumps 0.01, frame/slide clearance ≤0.02, frame vertical degree ≤0.05, frame parallel degree ≤0.1, pipe diameter/roundness error ≤0.08
• Incorporates Japanese technology for high-accuracy requirements
• Worm gear adjustment with schedulable precision control
• 3D adjustable scraping scar with ±20° rotation capability
• Turkish head push square system reduces mold weight while maintaining stable forming and uniform R angles
• Nylon damping blocks on level up shafts reduce impact on shafts and bearings

• Scroll up
• Uncoil
• Flattening
• End Shear & Butt Welding
• Accumulator
• Forming
• High-frequency induction welding
• Removing external burr
• Cooling
• Sizing
• Cutting
• Checking & Collecting
• Accessing Warehouse

• H.F. Welder: GGP250Kw Solid State High Frequency Welder
• Line Speed: Max. 70m/min
• Tube Length: 4-12m
• Cutting Accuracy: ±1mm
• Electric Installed Capacity: approx. 600KW
• Size of Whole Line: about 80×8m

As a CE & ISO9001:2008 certified manufacturer, our high-quality tube mill machines are exported to over 30 countries including Turkey, Egypt, Mexico, and throughout Asia, with proven reliability and long service life.
