Attribute | Value |
---|---|
Material | HRC, CRC, Galvanised Steel sheet |
Voltage | 220/380/415/420/440V |
Warranty | 1 Year |
Blade Material | SKD11 |
Width tolerance | +/-0.05mm |
Control | PLC |
After-sales Service | Engineers available to service machinery overseas |
Max. Slitting Strips | 25 strips |
Coil Weight | 15 tons max. |
Colour | Blue |

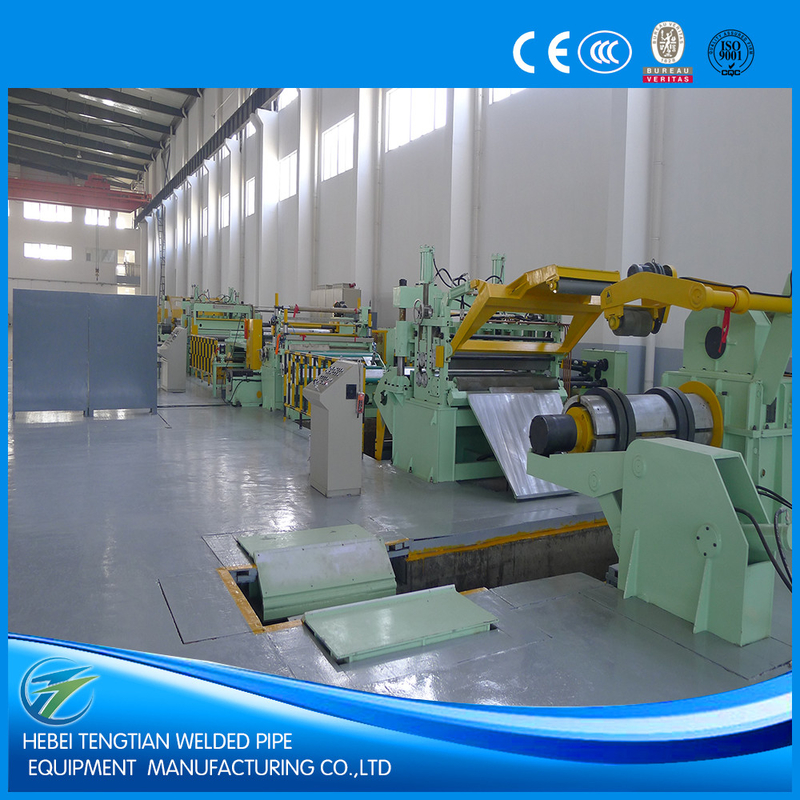

This thin sheet slitting line, also called metal coil slitter, is a production line designed to break down master coils into smaller coils of specific widths. The system includes coil-loading car, single mandrel uncoiling, coil-end-feeding and shoveling, double roller pinching feeding, three-roller-leveling, end-cutting, strip-aligning, disk shearing, scrap reeling, hole accumulator, pre-separator, tensioning, recoiling, coil down car, hydraulic control, and electric control.
Coil-loading → Double-mandrel uncoiler → Coil-head-feeding, press & shoveling → Double-roller pinch feeding, five-roller leveling → End-cutting → Hole Accumulator(1) → Strip-aligning → Disc shearing → Scrap reeling → Hole Accumulator(2) → Pre-separator/Tensioner/length-measuring roller → Recoiling/Coils press & separator → Coils-discharging → Hydraulic control → Electric control
Material: Carbon steel, stainless steel, galvanized plate, colored steel plate
Strip thickness: 0.3-3 mm
Max. Strip width: 1300mm
Coil dimensions: Inner diameter ≥Φ508mm, Outer diameter Φ1800mm
Max. Coil weight: 15000Kg
Slitter motor: 75KW DC motor
Slitter shaft: Ф205 x 1400mm
Disc knives: ID205mm x OD310mm x 10mm, 6CrW2Si(H13, SKD-11)
Separating disc: ID75 x OD180mm x 6mm, 65Mn
Recoiler block: Ф508 x 1400mm
Recoiler motor: 110KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels
Slitting speed: Max 100m/min, adjustable
Model | Thickness | Width | Coil Weight | Finished slit width | Max Slitting speed |
---|---|---|---|---|---|
JY-1 x 600 | 0.2-1mm | 100-600mm | Max 8T | Min. 20mm | 120m/min |
JY-2 x 1300 | 0.3-2mm | 300-1300mm | Max 15T | Min. 25mm | 150m/min |
JY-3 x 1600 | 0.3-3mm | 500-1600mm | Max 20T | Min 25mm | 120m/min |
JY-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 120m/min |
Note: The data in the table is for reference only. Each production line is custom-designed according to specific customer requirements.
Our high precision PLC control steel slitting machines are customized to meet each customer's specific requirements. Provide us with your parameters and we will design a suitable machinery equipment solution for your needs.
