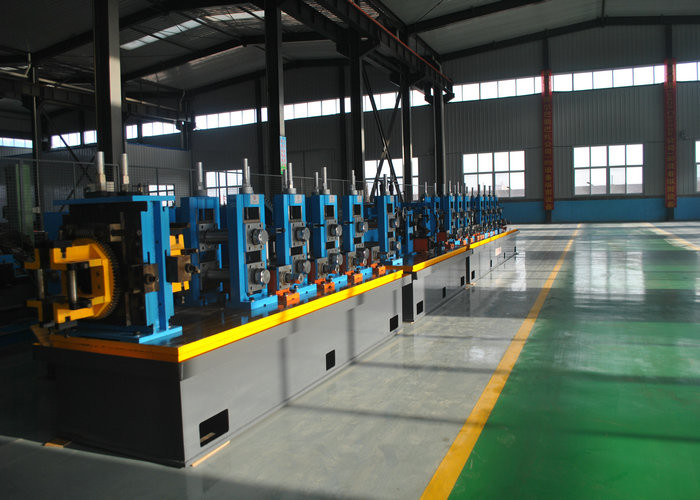

0.5-2inch High Speed Automatic ERW Pipe Mill Line
0.5-2inch High Speed Automatic ERW Pipe Mill Line
  • 0.5-2inch High Speed Automatic ERW Pipe Mill Line
  • 0.5-2inch High Speed Automatic ERW Pipe Mill Line
  • 0.5-2inch High Speed Automatic ERW Pipe Mill Line

0.5-2inch High Speed Automatic ERW Pipe Mill Line

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: ERW140
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
ERW140
Product Name:
0.5-2inch High Speed High Precision Automatic ERW Pipe Mill Line
Material:
Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel
Forming Method:
FFX Forming Technology & Directly Forming
Running Speed:
Max.70m/min
Pipe Shape:
Round, Square & Rectangular
Welding Type:
High Frequency Welding
Cutting Saw:
Milling Saw
Square Pipe:
25*25 - 110*110mm
Colour:
Blue
Keywords:
Automatic ERW Pipe Mill Line
Highlight:

High Light

Highlight:

erw tube mill

,

slitting line machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
8 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 Sets/Year
Product Description
0.5-2inch High Speed High Precision Automatic ERW Pipe Mill Line
Key Features
  • Material: Hot Rolled Coil, Cold Rolled Coil, Galvanised Steel
  • Forming Method: FFX Forming Technology & Directly Forming
  • Running Speed: Max. 70m/min
  • Pipe Shapes: Round, Square & Rectangular
  • Welding Type: High Frequency Welding
  • Cutting Saw: Milling Saw
  • Square Pipe Range: 25*25 - 110*110mm
Product Description
High frequency high precision full automatic ERW Pipe mill line machine designed for manufacturing welded steel pipes of Φ32mm-Φ140mm with 1.0mm-5.0mm wall thickness, capable of producing square pipes 25*25 - 110*110mm.
ERW Tube Mill Process
  • Uncoils and flattens steel coils into strips
  • Forms strips into round pipe shape using rollers
  • Welds tubes using high frequency solid state welder
  • Sizes tubes to expected dimensions
  • Cuts to length and bundles finished product
Product Advantages
  • High Precision: Level roller jumps 0.01, frame vertical degree ≤0.05, pipe diameter error ≤0.08
  • Incorporates Japanese technology for high accuracy requirements
  • Worm gear adjustment for precise control
  • 3D adjustable scraping system with ±20° rotation capability
  • Turkish head push square forming reduces mold weight
  • Nylon damping blocks reduce impact on shafts and bearings
Production Process
Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse
Technical Specifications
Raw Material
Parameter Specification
Material Application Hot or cold rolled steel strips, galvanized steel strips
Material Grade Low-carbon steel, low alloy steel: δs≤345Mpa
ID of Steel Strips Φ508-Φ610mm
OD of Steel Strips Φ800-Φ2000mm
Coiler Weight Max. 4000kg
Production Range
Pipe Type Dimensions Thickness
Round Pipe 32-140mm 1.0-5.0mm
Square Pipe 25*25-110*110mm 1.0-4.0mm
Rectangular Pipe 20*30-90*120mm 1.0-4.0mm
Additional Specifications
  • H.F. Welder: GGP300Kw Solid State High Frequency Welder
  • Line Speed: Max. 70m/min
  • Tube Length: 6-12m
  • Cutting Accuracy: ±3mm
  • Electric Installed Capacity: approx. 500KW
  • Size of Whole Line: about 80×9m
Our Services
  • On-site installation and operator training
  • One year quality guarantee with lifetime repair service
  • Pre-sale services: workshop and production output design
  • After-sale services: installation, training, and technical support
  • Option for extended engineer support (months to 1 year)
  • Complete project design for stainless/carbon steel pipe production
  • Loading and shipping responsibility
