Adjustable Tube Mill Machine with Friction Saw for Round and Square Pipes

Name: Adjustable Tube Mill Machine with Friction Saw for Round and Square Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ERW76

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ERW76

Material:

Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel

Adjusting:

Worm Gearing

Running Speed:

Max.80m/min

Pipe Shape:

Round, Square & Rectangular

Pipe Diameter:

32 - 127mm

Max.Thickness For Round Pipe:

1.0 - 4.0mm

Welding Type:

High Frequency Welding

Cutting Saw:

Friction Saw Cutting

Square Pipe:

25*25 - 10*100mm

Name:

Tube Mill Machine

Highlight:

High Light

Highlight:

carbon steel tube mill

welded tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

2.5 months

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Adjustable Tube Mill Machine Friction Saw Rectangular Shape 10 * 100mm

Product Specifications

Attribute	Value
Material	Hot Rolled Coil, Cold Rolled Coil, Galvanised Steel
Adjusting	Worm gearing
Running speed	Max. 80m/min
Pipe shape	Round, Square & Rectangular
Pipe Diameter	32 - 127mm
Max. Thickness for Round Pipe	1.0 - 4.0mm
Welding Type	High Frequency Welding
Cutting Saw	Friction Saw Cutting
Square Pipe	2525 - 10100mm
Name	Tube Mill Machine

High Frequency High Speed Tube Mill Machine

This high-speed, high-quality tube mill machine manufactures welded steel pipes of Φ76mm-Φ168mm with 2.0mm-6.0mm wall thickness, capable of producing profiled pipes within round pipe processing limits. Incorporating advanced pipe-making technology from domestic and international sources, our innovative production line design offers both economical and practical solutions.

Product Advantages

High precision: Level roller jumps 0.01, frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1, steel pipe diameter and roundness error ≤0.08
Utilizes Japanese technology to meet high accuracy requirements

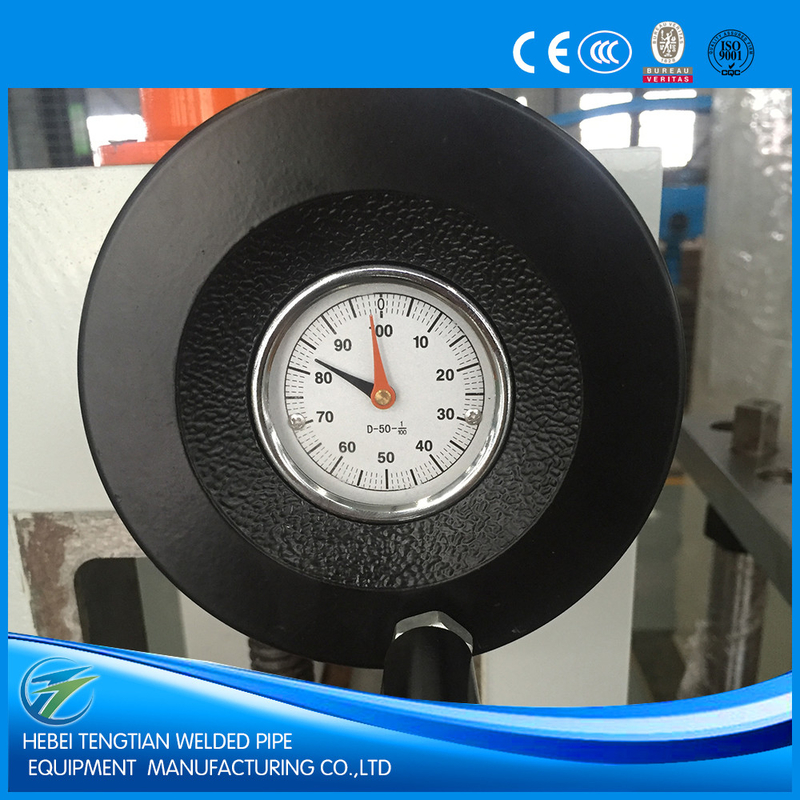

Worm gear and worm adjustment for precise, energy-efficient operation
3D adjustable scraping scar with ±20° rotation capability
Turkish head push square system reduces mold weight while ensuring stable forming and uniform R angles
Nylon damping blocks on level up shafts reduce impact on shafts and bearings

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Technical Specifications

Raw Material

Material application	Hot or cold rolled steel strips, galvanized steel strips
Material grade	Low-carbon steel, low alloy steel: δs≤345Mpa
ID of the steel strips	Φ450-Φ508mm
OD of the steel strips	Φ800-Φ2000mm
Coiler weight	Max. 3000kg

Production Range

Pipe Type	Size Range	Thickness
Round Pipe	32 - 127mm	1.0-4.0mm
Square Pipe	2525 - 100100mm	1.0-3.0mm
Rectangular Pipe	3020 - 12080mm	1.0-3.0mm

H.F. Welder: GGP250Kw Solid State High Frequency Welder
Line Speed: Max. 70m/min
Tube Length: 4-12m
Cutting Accuracy: ±1mm
Electric installed capacity: approx. 600KW
Size of whole line: about 80×8m

As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China, our high-quality, reliable machines with long service life have been exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, and Vietnam.

For more information about our tube mill machines, please contact us - we're happy to assist you.
