Product Details:
Payment & Shipping Terms:
|
| Material: | HRC,CRC,Galvanised Steel | Motor Type: | Servo Motor |
|---|---|---|---|
| Cutting Speed: | Max110m/min | Warranty: | 1 Year |
| Tube Size: | 10-32mm | Thickness: | 0.5-2.0mm |
| Cutting Accuracy: | ≤±2 Mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Saw Blade: | HSS / TCT Saw Blade | ||
| High Light: | cold cutting machine,cold cutting pipe equipment |
||

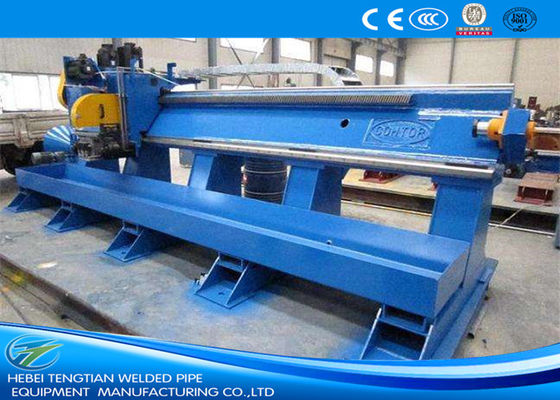

CS32 High Precision High speed HSS Saw Blade Cutting Cold Cut Pipe Saw by Servo motor
Specifications:
High precision,smooth running
Low noise,good cutoff surface,no burrs
without harm to people when saw blade crushed on cutting
Equipment description
High Precision without burr Cold Cut Pipe Saw

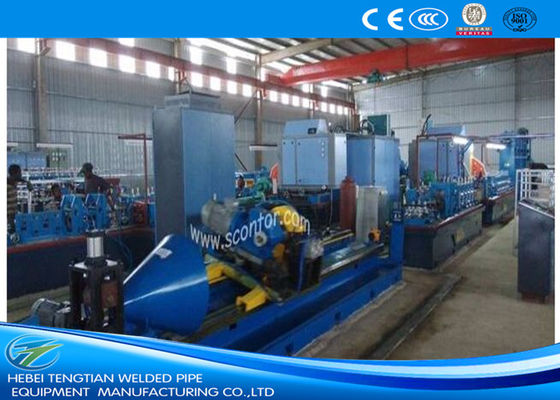

is a Very important link in the high frequency welded pipe production line,The cold cut saw's biggest advantage is to ensure the slice of high smoothness,that greatly improved the quality of products, but also save the manpower and product consumption.
The main parameters of 50 Cold saw
1. Drive Motor: YASKAWA Servo 11kw
2. Cutting Feed Motor: YASKAWA Servo 2kw
3. Blade Rotate Motor: YASKAWA Servo 5.5kw
4. Cutting Size: Pipe Diameter 10--32mm
5. Cutting Thickness: 0.5--2.0mm
6. Mill Speed: 110m/min
7. Cutting Frequency: 14/min
8. Precision: ±1mm
9. Full digitilized control, LCD human-computer interface to set up and amend parameters.
| Specification & Technical Parameters | CS50 | CS89 | CS127 |
| Round Tube | 15-50.8 mm | 32-89 mm | 38-127mm |
| Square Tube | 12-40mm | 25-70mm | 30-100mm |
| Rectangle Tube | 15x10…50x30 mm | 20x30…100x40 mm | 20x40…120x80 mm |
| Thickness |
0.8-3mm |
1.0-4.0mm |
1.0-4.0mm |
| Speed |
100 m/min. |
80 m/min. |
60 m/min. |
| Precision | ±2mm | ±2mm | ±2mm |
