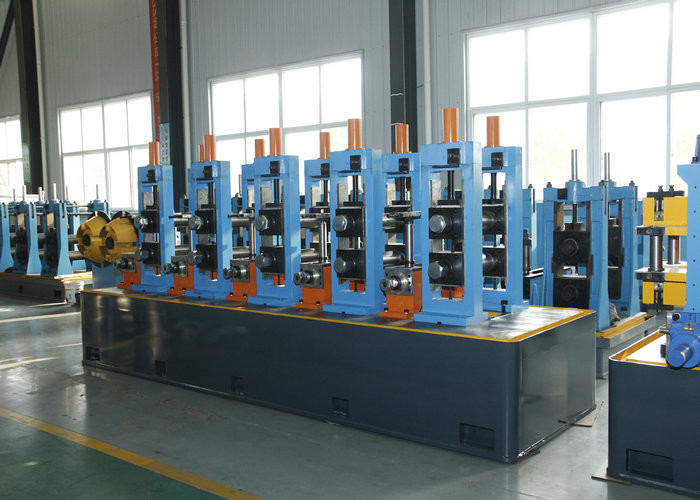

Galvanized Carbon Steel Pipe Mill Machine 50m/min Speed
Galvanized Carbon Steel Pipe Mill Machine 50m/min Speed
  • Galvanized Carbon Steel Pipe Mill Machine 50m/min Speed
  • Galvanized Carbon Steel Pipe Mill Machine 50m/min Speed
  • Galvanized Carbon Steel Pipe Mill Machine 50m/min Speed

Galvanized Carbon Steel Pipe Mill Machine 50m/min Speed

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: CS165
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
CS165
Material:
HRC,CRC,
Product Name:
Galvanised Carbon Steel 50m / Min Speed Pipe Mill Machine
Cutting Speed:
Max50m/min
Warranty:
1 Year
Round Pipesize:
60-165mm
Thickness:
2.0-6.0mm
Cutting Accuracy:
≤±2 Mm
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Saw Blade:
HSS / TCT Saw Blade
Square Pipe Size:
50*50 - 150*150mm
Highlight:

High Light

Highlight:

tube milling machine

,

steel pipe making machine

,

steel pipe manufacturing machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
90 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
Galvanised Carbon Steel 50m / Min Speed Pipe Mill Machine
Product Specifications
Attribute Value
Material HRC, CRC
Cutting Speed Max 50m/min
Warranty 1 Year
Round Pipe Size 60-165mm
Thickness 2.0-6.0mm
Cutting Accuracy ≤±2 mm
After-sales Service Engineers available to service machinery overseas
Saw Blade HSS / TCT Saw Blade
Square Pipe Size 50*50 - 150*150mm
Key Features
  • Long-term running with high speed and precision, low fault
  • Easy to operate and maintain
  • Long useful time, good characteristic
Technical Parameters
  • Cutting Length: 0.5-32m Tunable
  • Cutting Precision: ±3mm
  • Max Cutting Frequency: 10 cuttings per min
  • Max Speed: 50m/min
  • Max Thickness of Pipes: 6 mm
  • Saw Head Action: Hydraulic Drive (Flat-pushing Manipulation)
  • Pipe Clamp: Hydraulic Clamping
Machine Characteristics
DC Drag Flying Cutoff Machine

Our DC drag flying saw features easy operation and high precision. Using LCD touch screen human-computer interface, all parameters can be modified on-site, achieving optimal mechanical and electrical integration. Designed for long-term running with high speed, precision, and low fault rate.

AC Drag Flying Cutoff Machine

Our AC flying saw meets international standards. The AC drive converts power from AC to DC and back to AC, eliminating controlled silicon false triggering and pulse loss from power grid fluctuations, enhancing machine's anti-jamming capability. AC motors offer smaller inertia than DC motors, enabling easier tracing and adjustment with high precision during pipe speed fluctuations. AC motors require less maintenance and offer superior characteristics with extended useful life.

Model Specification (mm) Thickness (mm) Mill Installed Capacity (kw) Line Area (m) Working Speed (M/min)
ERW20 Ф8-Ф20 (Circular)
10×10 -15×15 (Square)		 0.5-1.5 50KW 40×3.8 100
ERW32 Ф10-Ф32 (Circular)
10×10 -25×25 (Square)		 0.3-2.0 50KW 45×4 100
ERW50 Ф20-Ф50 (Circular)
15×15 -40×40 (Square)		 0.8-3.0 65KW 50×4 100
ERW76 Ф32-Ф76 (Circular)
25×25 -60×60 (Square)		 1.2-4.0 120KW 70×5 100
ERW89 Ф42-Ф89 (Circular)
25×25 -70×70 (Square)		 1.5-4.5 150KW 72×5.5 70
Galvanized Carbon Steel Pipe Mill Machine 50m/min Speed 0
