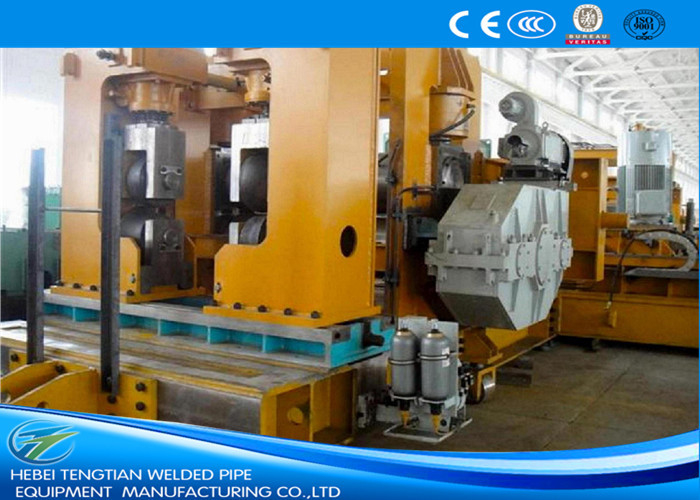

Hot Rolled ERW Straight Seam Welded Pipe Mill for Construction

Name: Hot Rolled ERW Straight Seam Welded Pipe Mill for Construction
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LX2000-25.4(X70)-2540mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	Teng Tian
Certification:	CE / ISO9001
Model Number:	LX2000-25.4(X70)-2540mm

Detail Information

Place of Origin:

CHINA

Brand Name:

Teng Tian

Certification:

CE / ISO9001

Model Number:

LX2000-25.4(X70)-2540mm

Product Name:

Hot Rolled Straight Seam Welded Pipe Mill For ERW Black Round Tube Building Materials

Application:

Construction; Oil And Gas; Water Supply

After-sales Servive:

Engineers Available To Service Machinery Overseas

Coil Width:

400-800 Mm

Thickness:

Max.25.4

Material:

HRC

Colour:

Blue / Yellow

Keywords:

Straight Seam Welded Pipe Mill

Highlight:

High Light

Highlight:

seamless pipe mill

welded pipe production line

Trading Information

Minimum Order Quantity:

1 SET

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

6 MONTHS

Payment Terms:

T/T,L/C

Supply Ability:

20 SETS / YEAR

Product Description

Hot Rolled Straight Seam Welded Pipe Mill For ERW Black Round Tube Building Materials

Product Specifications

Attribute	Value
Application	Construction; Oil and Gas; Water Supply
After-sales Service	Engineers available to service machinery overseas
Coil Width	400-800 mm
Thickness	Max. 25.4 mm
Material	HRC (Hot Rolled Coil)
Color	Blue / Yellow

Product Overview

The spiral welded pipe mill processes low carbon steel or low alloy steel strip into tubes through specific forming angles, then welds them into steel pipes using submerged arc welding technology. This method enables production of large diameter pipes from narrow steel strips.

Primary Applications

Liquid Delivery: Water supply and drainage systems
Gas Delivery: Coal gas, steam, and LPG transportation
Structural Use: Piling pipes, bridge construction, dock infrastructure, road building, and general construction applications

Production Process

Feeding → Uncoiling → Leveling → Shearing & Butt Welding → Rotary Shear → Edge Milling → Main Drive → Pre-bend & Guide Board → Forming → Inside Welding → Outside Welding → Cutting Off → Pull Out → End-facing & Beveling → Hydrotesting → Collection

Technical Specifications

Series	Min Pipe O.D. (mm)	Max Pipe O.D. (mm)	Min Thickness (mm)	Max Thickness (mm)	Coil Width (mm)	Max Production Capacity (ton/year)	Area (m²)
LX600	219-508	325-820	2-4	4-10	400-600	8,000-12,000	20×96
LX800	219-508	406-1,220	2-4	4-12	400-800	9,000-17,000	20×96
LX1050	219-508	630-1,620	2-4	4-14	450-1,050	16,000-23,000	24×108
LX1250	406-610	820-1,620	3-6	8-18	500-1,250	26,000-35,000	24×108
LX1550	406-610	1,420-3,200+	3-6	12-25.4+	500-1,550	36,000-76,000	26×125
LH2000	406-610	2,020-3,200+	4-6	20-25.4+	1,000-2,000	77,000-93,000	-
