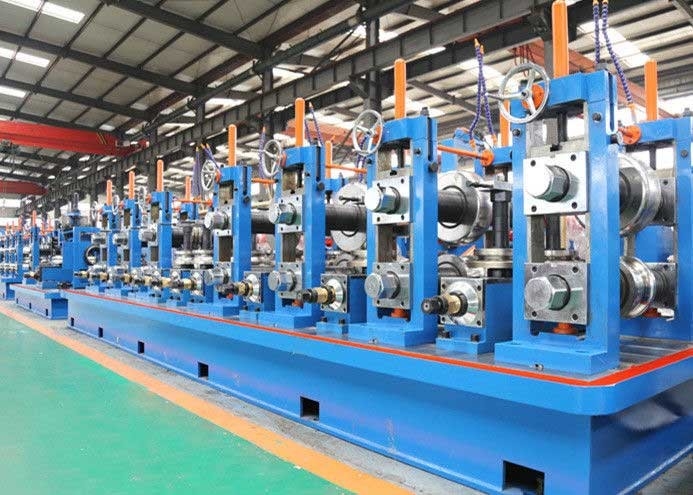

High Frequency Welded Pipe Mill for Square Tubes 50x50-130x130mm

Name: High Frequency Welded Pipe Mill for Square Tubes 50x50-130x130mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG165
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG165

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG165

Product Name:

High Frequency Welded Pipe Mill Stainless Steel Welded ERW Pipe Mill Square Shape Large 130 × 130mm Pipe Size

Product Speed:

Max 80m/min

Pipe Diameter:

60-165mm

Pipe Thickness:

3.0-7.0mm

Type Of Welding:

High Frequency Welding

Product Name:

Square Tube Mill

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

Stainless high frequency welded pipe mill

130 × 130mm high frequency welded pipe mill

Stainless high frequency welded tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

Stainless Steel ERW High Frequency Welded Pipe Mill For Square Shape Large 130 × 130mm Size

Product Specifications

Attribute	Value
Product name	High Frequency Welded Pipe Mill Stainless Steel Welded ERW Pipe Mill Square Shape Large 130 × 130mm Pipe Size
Product speed	Max 80m/min
Pipe diameter	60-165mm
Pipe thickness	3.0-7.0mm
Type of welding	High frequency welding

HG165 Adjustable Size High Frequency Welded Pipe ERW Pipe Mill

This ERW pipe mill with high frequency solid welder can produce round pipes, square pipes, and rectangular pipes at high speed. It can also produce L, T, and Z shape pipes, reducing roller costs while ensuring finished pipe quality.

Production Process

material (steel coil) → uncoiler → shear and welder → horizontal (or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening (turkey head) → cut off machine → run out table

Technical Parameters

Stands of forming mill	8
Stands of sizing mill	6
Shaft material	40Cr
Round pipe diameter	60-165mm
Round pipe thickness	3.0-7.0mm
Square pipe size	50×50-130×130mm
Square pipe thickness	3.0-6.0mm

Note: We can design the machine according to specific customer requirements.

Key Features

Large diameter roller shafts made of 42CrMo material
Equipped with dual motors for enhanced efficiency
High production efficiency with excellent tube straightness
High reliability with low failure rate
User-friendly operation
Computer saw adopts Shengyang brand, the best quality in domestic market
High frequency welder uses the best brand in China

Cold Sawing Cutting System

The digitally controlled cold cutting machine consists of mechanical, electronic, and hydraulic components. Three shafts (tracking shaft, cutting feeding shaft, and saw blade rotating shaft) are controlled by a special motion controller with servo motor drive. Parameters are entered via LCD touch screen, and working conditions can be monitored in real-time.

The cold saw uses high-speed steel blades and operates synchronously with the pipe mill production line. The CNC system ensures precise cutting speed and position accuracy, with adjustable feeding and rotating speeds programmed according to technological requirements.
