1600mm Carbon Steel Slitting Machine for 0.5-4.0mm Coils

Name: 1600mm Carbon Steel Slitting Machine for 0.5-4.0mm Coils
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: SJ1600*4
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	SJ1600*4

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

SJ1600*4

Name:

Adjustable Size Carbon Steel Slitting Machine Welded 1600mm Coil Slitting Machine

Product Speed:

Max 120m/min

Steel Thickness:

0.5-4.0mm

Special Require:

Can Design According To The Customer

Type:

Carbon Steel Slitting Machine

Coil OD:

<2000mm

Highlight:

High Light

Highlight:

slitting line machine

sheet metal slitter machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

two month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

150 set per year

Product Description

Adjustable Size Carbon Steel Slitting Machine Welded 1600mm Coil Slitting Machine

Attribute	Value
Name	Adjustable Size Carbon Steel Slitting Machine Welded 1600mm Coil Slitting Machine
Product speed	Max 120m/min
Steel thickness	0.5-4.0mm
Special requirements	Can design according to customer specifications
Type	Carbon Steel Slitting Machine
Coil OD	<2000mm

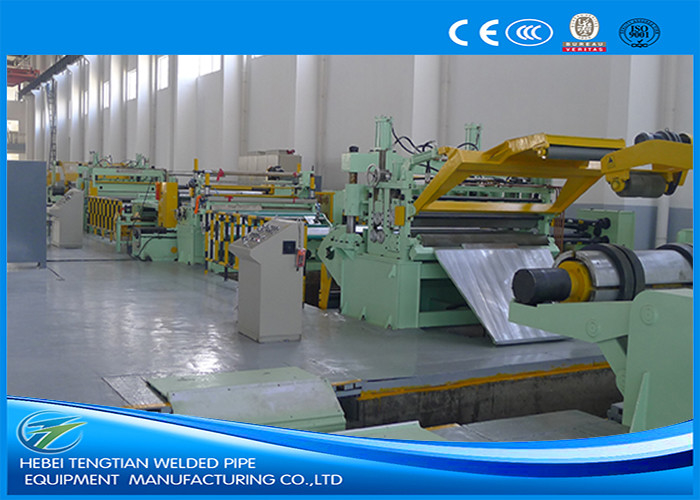

Slitting Line Machine Profile

The slitting line machine is primarily composed of uncoiler, feeder, slitter, and recoiler. Its function is to slit wide coils into specified width strips along the length direction, which can be used as billet for milling, welding pipe, cold bend forming, and stamping. Different material blades can be used to slit various metal coils.

Product Process

Loading coil car
Uncoiler
Straightener device
Pinch roll & leveler & hydraulic shearer
Loop pit
Side guide
Slitter
Transition platform & scrap winder
Loop pit
Tension station
Recoiler
Unloading coil car

Basic Parameters

Material	Carbon steel, stainless steel, galvanized steel
Material thickness	0.5-4.0mm
Material width	900-1600mm
Coil ID	Ø508/610mm
Coil OD	<2000mm
Coil weight	Max 24 Ton

Other Models of Slitting Line

Model	Steel thickness	Steel width	Steel coil weight
3×1600mm	0.5-3.0mm	900-1600mm	30 Ton
4×1600mm	0.5-4.0mm	900-1600mm	30 Ton
6×1600mm	1-6mm	900-1600mm	30 Ton
8×2000mm	2-8mm	900-2000mm	35 Ton
10×2200mm	3-10mm	900-2200mm	35 Ton
12×2200mm	3-12mm	900-2200mm	35 Ton
16×2500mm	4-16mm	900-2500mm	35 Ton
20×2500mm	6-20mm	900-2500mm	35 Ton

Note: These models are for reference only. The product range and thickness are adjustable. We have our own engineering team and can design machines according to customer specifications.
