Stainless Steel Slitting Machine 120m/min Max Speed 30 Ton Capacity

Name: Stainless Steel Slitting Machine 120m/min Max Speed 30 Ton Capacity
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: SJ1600*6
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	SJ1600*6

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

SJ1600*6

Material:

Carbon Steel,stainless Steel

Product Speed:

Max 120m/min

Steel Thickness:

1.0-6.0mm

Special Require:

Can Design According To The Customer

Product Name:

Stainless Steel Slitting Machine

Coil Weight:

Max 30 Ton

Highlight:

High Light

Highlight:

sheet metal slitter machine

strip slitting machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

two month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

150 set per year

Product Description

Galvanized / Stainless Steel Slitting Machine - Customized Design 120m Speed

Key Specifications

Attribute	Value
Material	Carbon Steel, Stainless Steel
Product Speed	Max 120m/min
Steel Thickness	1.0-6.0mm
Special Requirements	Custom design available
Coil Weight	Max 30 Ton

High Precision Carbon Steel Stainless Steel Slitting Line Machine

Machine Profile

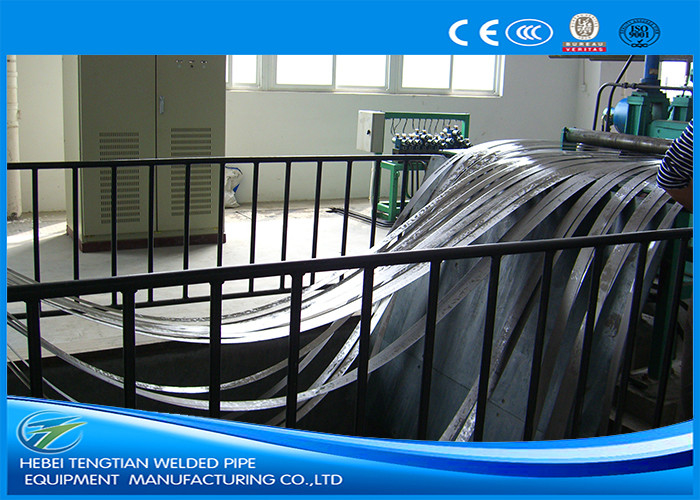

The slitting line machine is primarily composed of uncoiler, feeder, slitter and recoiler. Its function is to slit wide coils into specified width strips along the length direction, which can be used for milling, welding pipe, cold bend forming, and stamping as billet. Different material blades can be used to slit various metal coils.

Production Process

Loading coil car → Uncoiler
Straightener device → Pinch roll & leveler & hydraulic shearer
Loop pit → Side guide → Slitter
Transition platform & scrap winder → Loop pit
Tension station → Recoiler → Unloading coil car

Technical Parameters

Parameter	Specification
Material	Carbon steel, stainless steel, galvanized steel
Material Thickness	1.0-6.0mm
Material Width	900-1600mm
Coil ID	Ø508/610mm
Coil OD	<2500mm
Coil Weight	Max 30 Ton

Available Models

Model	Steel Thickness	Steel Width	Coil Weight
3×1600mm	0.5-3.0mm	900-1600mm	30 Ton
4×1600mm	0.5-4.0mm	900-1600mm	30 Ton
6×1600mm	1-6mm	900-1600mm	30 Ton
8×2000mm	2-8mm	900-2000mm	35 Ton
10×2200mm	3-10mm	900-2200mm	35 Ton
12×2200mm	3-12mm	900-2200mm	35 Ton
16×2500mm	4-16mm	900-2500mm	35 Ton
20×2500mm	6-20mm	900-2500mm	35 Ton

Note: These models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your specific requirements.
