Steel Tube Making Machine
>

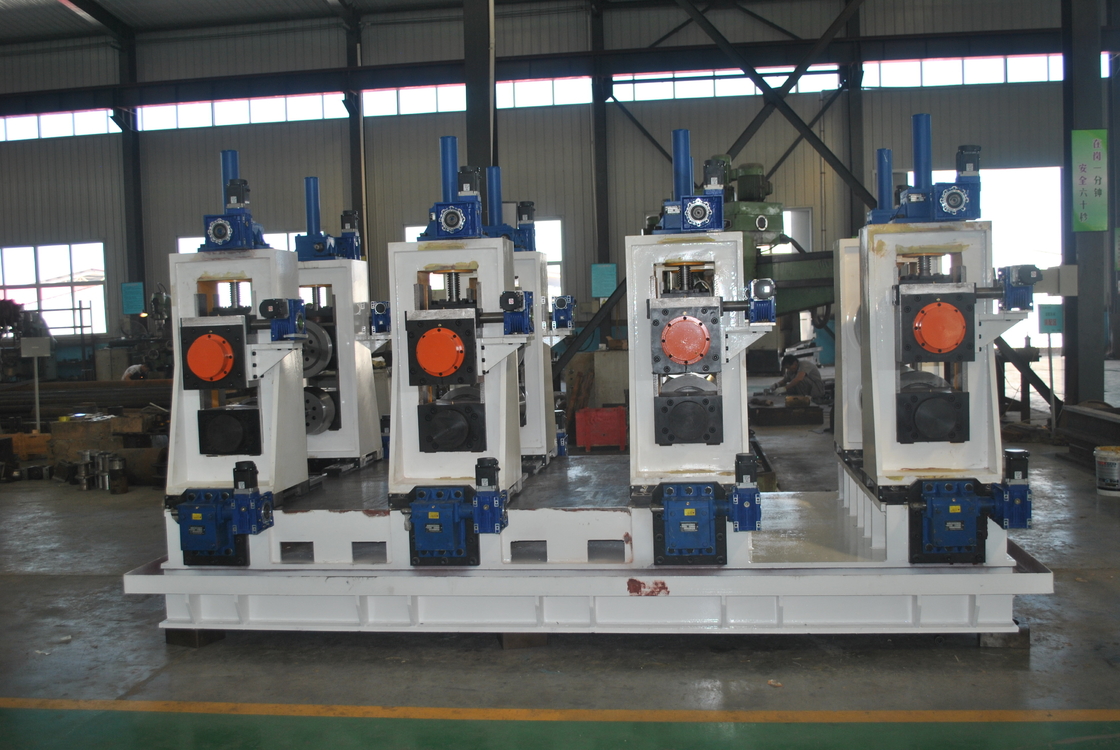

Servo Automatic Steel Tube Making Machine for Carbon Steel

Servo Automatic Steel Tube Making Machine for Carbon Steel

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: LW200
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE ISO
Model Number:
LW200
Features:
Servo Automatic
Material:
Carbon Steel
Product Speed:
Max 120m/min
Special Require:
Can Design According To The Customer
Production:
Channel Steel , Angle Steel , C Channel Steel
Product Name:
Blue Cold Roll Forming Machine
Highlight:

High Light

Highlight:

High Performance steel tube making machine

,

Smooth Production steel tube making machine

,

High Performance steel pipe making machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
packed in seaworthy material
Delivery Time:
two month
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
150 set per year
Product Description
Servo Automatic Adjustment Steel Tube Making Machine

High performance cold roll forming machine with servo automatic adjustment for smooth production of various steel tubes and pipes.

Key Features
  • Servo automatic adjustment system for precise control
  • Maximum production speed of 120m/min
  • Customizable designs available
  • Produces channel steel, angle steel, and C channel steel
  • High frequency welding for strong, durable joints
Technical Specifications
Material Carbon steel
Max Production Speed 120m/min
Customization Available upon request
Output Products Channel steel, Angle steel, C channel steel
Production Process
Step 1 - Coils: Carbon steel coils prepared for pipe and tube production
Step 2 - Uncoiler: Steel coil placed on the uncoiler
Step 3 - Leveler: Coil stock is leveled for uniform thickness
Step 4 - Mill: Flat steel passes through forming rolls with servo automatic adjustment
Step 5 - Mill Rollers: Rolls form steel into shape with servo system precision
Step 6 - Welder: Electric resistance welder finishes the pipe or tube
Step 7 - Scarfer: Seam is scarfed for smooth surface finish
Step 8 - Saw: Pipe and tube cut to specified length
Available Mill Models
No. Model Pipe Size Thickness Speed (m/min) Capacity (KW) HF (KW) Area
1 HG20 ø8 - ø20 mm 0.3 - 1.5 mm 30 - 150 210 100 40*12
2 HG32 ø10 - ø32 mm 0.4 - 2.0 mm 30 - 150 300 150 40*12
3 HG50 ø16 - ø50 mm 0.7 -2.5 mm 30 - 150 410 200 60*12
4 HG60 ø22 - ø60 mm 0.9 - 3.0 mm 30 - 150 410 200 60*12
5 HG76 Ø25 - ø76 mm 1 - 4 mm 30 - 120 580 300 80*16
6 HG89 Ø32 - ø89 mm 1 - 4.5 mm 30 - 100 660 300 100*16
7 HG114 Ø45 - ø114 mm 1.5 -5 mm 30 - 80 920 400 100*16
8 HG140 Ø50 - ø140 mm 1.5 - 5.5 mm 30 - 80 920 400 100*16
9 HG165 Ø60 - ø165 mm 2 - 6 mm 30 - 60 1100 500 100*16
10 HG219 Ø114 - ø219mm 3 - 8 mm 20 - 45 1400 600 150*16
11 HG273 Ø114 - ø273mm 4 - 12 mm 15 - 30 2100 800 160*18
12 HG325 Ø165 - ø325 mm 4 - 14 mm 10 - 30 2500 1000 200*24
13 HG426 Ø165 - ø426 mm 4 - 16 mm 8 - 25 2900 1200 250*24
14 HG508 Ø219 - ø508 mm 5 - 18 mm 5 - 18 3400 1600 300*24
15 HG610 Ø355 - ø610 mm 5 - 18 mm 5 - 18 3700 1600 300*24
16 HG760 Ø426 - ø760 mm 5 - 20 mm 5 - 20 4300 1800 300*24
Technical Parameters
Applicable Industries Hotels, Manufacturing Plant, Construction Works, Energy & Mining
Showroom Location United States, Italy, Pakistan, India, Russia, Thailand, Tajikistan
Feature Servo System Automatic Adjustment Tube Machinery
Marketing Type Servo System
Warranty of Core Components 1 Year
Core Components Engine, Gearbox, Motor, Gear
Condition New
Type Steel Tube Making Machine
Pipe Material Carbon steel
Application Energy Supply Pipe
Production Capacity 30-80m/min
Place of Origin Hebei, China
Brand Name Tengtian
Voltage 380V
Power 400KW
Dimension (L*W*H) 40m*3m*2m
Weight 20000kg
Warranty 1 Year
Key Selling Points High-accuracy
After-sales Service Engineers available
Pipe Length 6-12m
Pipe Diameter 20-60mm
Pipe Thickness 0.8-2.0mm
Welding Method High Frequency Welding
Material Options Carbon Steel, Stainless Steel, Alloy Steel
Service Treatment Pickling, Passivation, Polishing, Anodizing, Plating, Coating
Forming Process Roll Forming
