HG114 Carbon Steel Pipe Production Line 50-114mm Diameter 100m/min

Name: HG114 Carbon Steel Pipe Production Line 50-114mm Diameter 100m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG114

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG114

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Product Speed:

Max 100m/min

Pipe Diameter:

50-114mm

Pipe Thickness:

1.0-4.5mm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Highlight:

High Light

Highlight:

erw pipe mill line

steel pipe mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

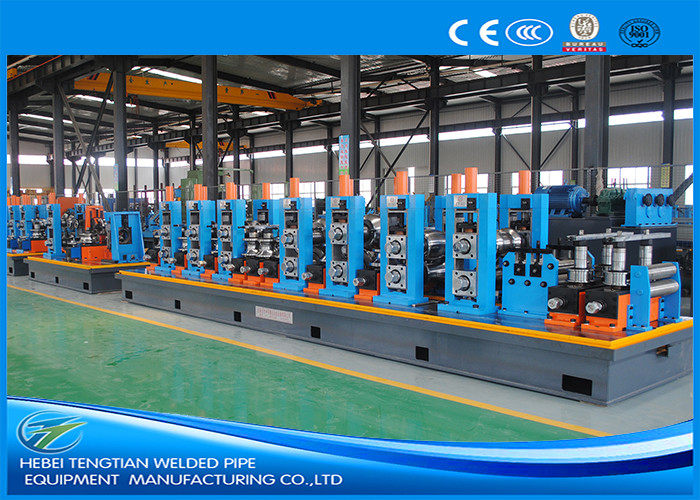

HG114 Blue Steel Pipe Production Line

High-speed carbon steel pipe production line with maximum speed of 100m/min for large diameter pipes (50-114mm). Capable of producing round, square, rectangular, and custom-shaped pipes with precision.

Key Specifications

Attribute	Value
Material Compatibility	Carbon steel, stainless steel, low alloy steel
Maximum Production Speed	100m/min
Pipe Diameter Range	50-114mm
Pipe Thickness Range	1.0-4.5mm
Welding Type	High frequency welding
Customization	Can be designed according to customer requirements

Production Process

material(steel coil) → uncoiler → shear and welder → horizontal(or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening(turkey head) → cut off machine → run out table

Technical Parameters

Forming mill stands: 7
Sizing mill stands: 5
Shaft material: 40Cr
Round pipe diameter: 50-114mm
Round pipe thickness: 1.0-4.5mm
Square pipe size: 40×40-90×90mm
Square pipe thickness: 1.0-3.0mm

Available ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20

Note: Models shown are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your specific requirements.
