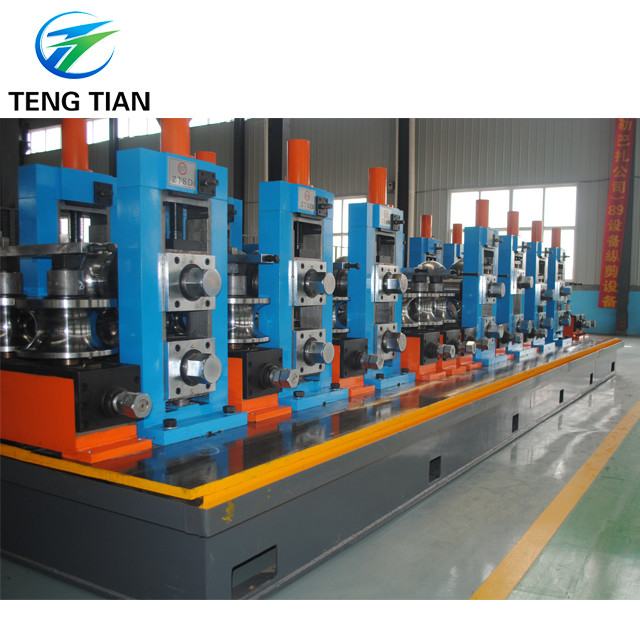

Automatic Pipe Mill Machine with Cr12Mov Roller 12-60mm Diameter

Name: Automatic Pipe Mill Machine with Cr12Mov Roller 12-60mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG60

Product Name:

Automatic Control Pipe Mill Machine With Cr12Mov Forming Roller

Material:

Steel Pipe,stainless Pipe

Product Speed:

Max 90m/min

Pipe Diameter:

12-60mm

Pipe Thickness:

1.0-3.0mm

Keyword:

Pipe Mill Machine Cr12Mov Roller

Highlight:

High Light

Highlight:

tube milling machine

steel pipe making machine

steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

one month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

Automatic Control Pipe Mill Machine with Cr12Mov Forming Roller

Product Specifications

Attribute	Value
Product Name	Automatic Control Pipe Mill Machine with Cr12Mov Forming Roller
Material	Steel pipe, Stainless pipe
Product Speed	Max 90m/min
Pipe Diameter	12-60mm
Pipe Thickness	1.0-3.0mm

Product Description

This Automatic Control Cold Cut Pipe Saw with 60mm Pipe Mill Machine can cut tubes at speeds up to 120m/min. The advanced automatic control system optimizes blade position based on tube diameter and thickness, adjusting feed speed and blade rotation to ensure superior cut surface quality with no burrs.

The system eliminates mechanical clearance during operation, reduces the impact on cold cutting saw blades, minimizes blade wastage, lowers production costs, and extends machine service life.

Production Process

Material (steel coil)
Uncoiler
Shear and welder
Horizontal (or cage) accumulator
Forming mill
HF solid welder
Sizing mill
Rough straightening (turkey head)
Cold cut pipe saw
Run out table

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Note: These models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your specific requirements.
