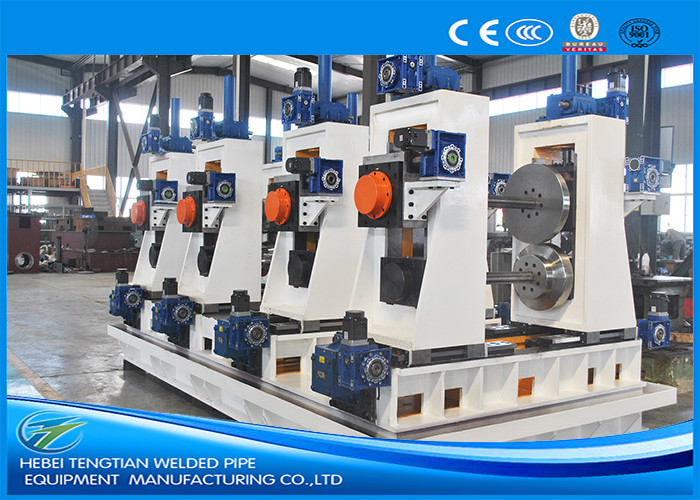

Adjustable Square Tube Mill 50x50-120x120mm Carbon Steel 100m/min

Name: Adjustable Square Tube Mill 50x50-120x120mm Carbon Steel 100m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LW500
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	LW500

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

LW500

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Product Speed:

Max 100m/min

Pipe Diameter:

50*50-120*120mm

Pipe Thickness:

1.0-5.0mm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Highlight:

High Light

Highlight:

tube mill line

stainless steel pipe mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

Adjustable Size Square Tube Mill Carbon Steel Heavy Duty Energy Saving

Product Specifications

Material	Carbon steel, stainless steel, low alloy steel
Product Speed	Max 100m/min
Pipe Diameter	50×50-120×120mm
Pipe Thickness	1.0-5.0mm
Type of Welding	High frequency welding
Special Requirements	Custom designs available

Full Automatic Adjustable Size Carbon Steel Stainless Steel Square Tube Mill

This equipment combines international market demands with our company's LW series unit and FF forming technology. The automatic square and rectangular tube equipment can quickly adjust forming rollers, significantly reducing product changeover time to improve efficiency and reduce production costs.

The system uses one set of combined molds to produce different tube specifications - only adjustment is needed, not replacement. This achieves over 90% roller savings, dramatically reducing roller costs.

Production Process

material (steel coil) → uncoiler → shear and welder → horizontal (or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening (turkey head) → cut off machine → run out table

Basic Parameters

Stands of Forming Mill	7
Stands of Sizing Mill	5
Square Pipe Size	50×50-120×120mm
Square Pipe Thickness	1.0-5.0mm

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
LW200	30×30-50×50mm	1-3mm	20-80
LW600	60×60-150×150mm	2-7mm	20-60
LW800	80×80-200×200mm	1-3mm (or 4-13)	20-40
LW1000	100×100-250×250mm	3-12.7mm (or4-14)	15-30
LW1200	120×120-300×300mm	3-14mm	10-25
LW1400	150×150-350×350mm	4-14mm	8-20
LW1600	200×200-400×400mm	4-16mm	8-20

Note: Models shown are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your specific requirements.
