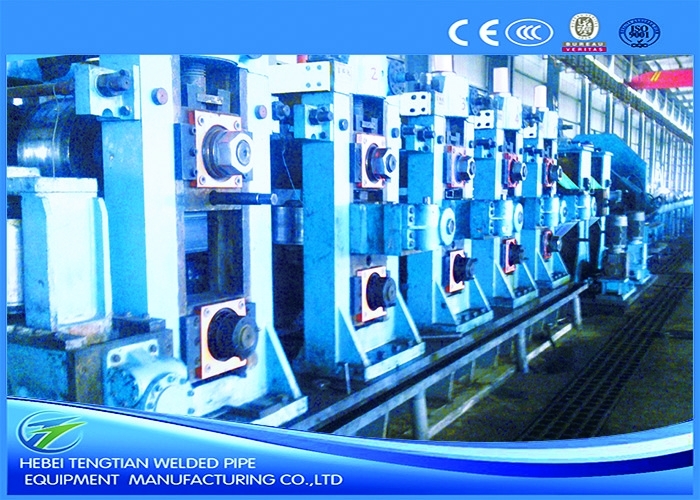

Full Automatic FF Forming Square Tube Mill 80-200mm

Name: Full Automatic FF Forming Square Tube Mill 80-200mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LW800
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	LW800

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

LW800

Mill Name:

Full Automatic FF Forming For 200 × 200mm Pipe Customized Design Square Tube Mill

Product Speed:

Max 50m/min

Pipe Diameter:

80*80-200*200mm

Pipe Thickness:

1.0-3.0mm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Highlight:

High Light

Highlight:

tube mill line

stainless steel pipe mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

Full Automatic FF Forming For 200 × 200mm Pipe Customized Design Square Tube Mill

Key Specifications

Attribute	Value
Mill Name	Full Automatic FF Forming For 200 × 200mm Pipe Customized Design Square Tube Mill
Product Speed	Max 50m/min
Pipe Diameter	80×80-200×200mm
Pipe Thickness	1.0-3.0mm
Type of Welding	High Frequency Welding
Special Requirements	Can be designed according to customer specifications

Product Description

This automatic square and rectangular tube equipment combines international market demands with our company's LW series unit and FF forming technology. It features rapid adjustment of forming rollers, significantly reducing product changeover time to improve efficiency and reduce production costs.

The equipment can produce different size tubes without roll changes, using one set of combined molds. For different tube specifications, only adjustments are needed - no mold changes required. This achieves a roller saving rate above 90%, substantially reducing roller costs.

Production Process

Material (steel coil) → Uncoiler → Shear and Welder → Horizontal (or cage) Accumulator → Forming Mill → HF Solid Welder → Sizing Mill → Rough Straightening (Turkey Head) → Cut Off Machine → Run Out Table

Technical Parameters

Parameter	Value
Stands of Forming Mill	7
Stands of Sizing Mill	5
Square Pipe Size	80×80-200×200mm
Square Pipe Thickness	1.0-3.0mm

Available ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
LW200	30×30-50×50mm	1-3mm	20-80
LW600	60×60-150×150mm	2-7mm	20-60
LW800	80×80-200×200mm	1-3mm (or 4-13)	20-40
LW1000	100×100-250×250mm	3-12.7mm (or 4-14)	15-30
LW1200	120×120-300×300mm	3-14mm	10-25
LW1400	150×150-350×350mm	4-14mm	8-20
LW1600	200×200-400×400mm	4-16mm	8-20

Note: The above models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your special requirements.
