Carbon Steel Square Tube Mill 200x200mm High Frequency Welding

Name: Carbon Steel Square Tube Mill 200x200mm High Frequency Welding
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LW800
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	LW800

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

LW800

Mill Name:

Carbon Steel Rectangular Shape 200 * 200mm Pipe Square Tube Mill

Product Speed:

Max 50m/min

Pipe Diameter:

80*80-200*200mm

Pipe Thickness:

4.0-13.0mm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Highlight:

High Light

Highlight:

square pipe making machine

tube mill line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

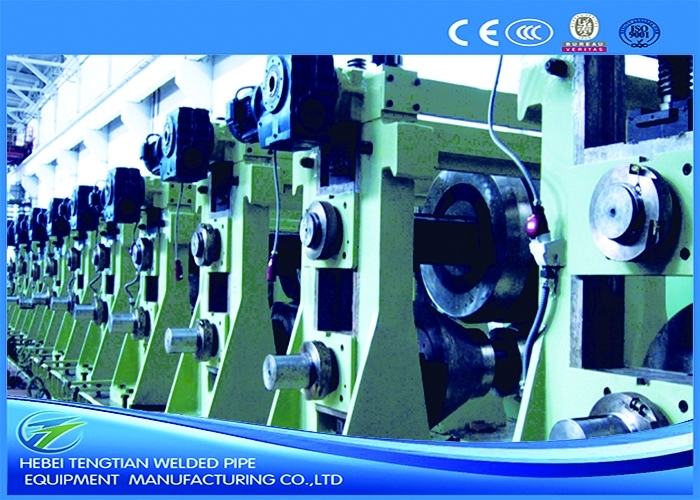

Carbon Steel Rectangular Shape 200 * 200mm Pipe Square Tube Mill

Product Specifications

Attribute	Value
Mill Name	Carbon Steel Rectangular Shape 200 * 200mm Pipe Square Tube Mill
Product Speed	Max 50m/min
Pipe Diameter	8080-200200mm
Pipe Thickness	4.0-13.0mm
Type of Welding	High Frequency Welding
Special Requirements	Can be designed according to customer specifications

Product Description

This high-performance square and rectangular tube mill combines international market demands with our advanced LW series unit and FF forming technology. The automatic equipment features rapid adjustment of forming rollers, significantly reducing product changeover time to enhance efficiency and lower production costs.

The innovative design allows production of different tube sizes without roll changes, using a single set of combined molds. Simply adjust the settings to produce various tube specifications, achieving over 90% roller savings and substantial cost reductions.

Production Process

Material (steel coil)
Uncoiler
Shear and welder
Horizontal (or cage) accumulator
Forming mill
HF solid welder
Sizing mill
Rough straightening (turkey head)
Cut off machine
Run out table

Technical Parameters

Stands of forming mill	7
Stands of sizing mill	5
Square pipe size	80×80-200×200mm
Square pipe thickness	4.0-13.0mm

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
LW200	3030-5050MM	1-3MM	20-80
LW600	6060-150150MM	2-7MM	20-60
LW800	8080-200200MM	1-3MM (or 4-13)	20-40
LW1000	100100-250250MM	3-12.7MM (or 4-14)	15-30
LW1200	120120-300300MM	3-14MM	10-25
LW1400	150150-350350MM	4-14MM	8-20
LW1600	200200-400400MM	4-16MM	8-20

Note: Models shown are for reference only. Product range and thickness are adjustable. Our engineering team can design machines to meet specific customer requirements.
