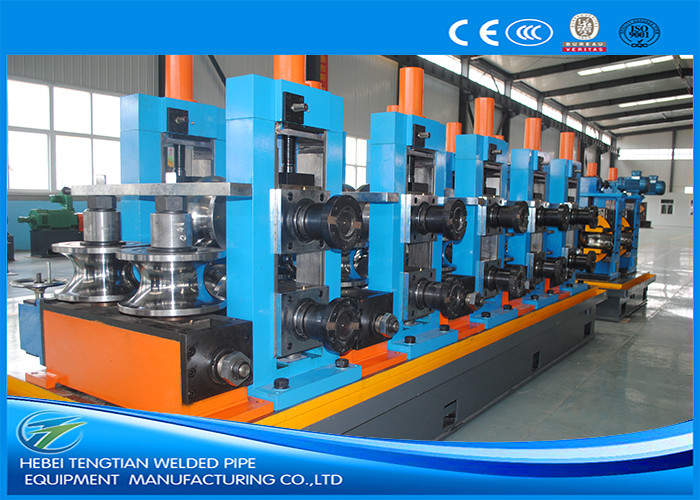

High Frequency Steel Pipe Production Line 60-165mm Diameter 100m/min

Name: High Frequency Steel Pipe Production Line 60-165mm Diameter 100m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG165
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO9001 BV
Model Number:	HG165

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO9001 BV

Model Number:

HG165

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Product Speed:

Max 100m/min

Pipe Diameter:

60-165mm

Pipe Thickness:

2.0-5.0mm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Highlight:

High Light

Highlight:

erw pipe mill line

steel tube production line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

High Frequency Steel Pipe Production Line 165mm Diameter Pipe ISO Certification

Product Specifications

Attribute	Value
Material	Carbon steel, stainless steel, low alloy steel
Product speed	Max 100m/min
Pipe diameter	60-165mm
Pipe thickness	2.0-5.0mm
Type of welding	High frequency welding
Special requirements	Custom design available

HG165 Adjustable Pipe Size Carbon Steel High Speed Pipe Production Line

This high-frequency steel pipe production line features solid welding technology, capable of manufacturing round, square, and rectangular pipes at high speeds. It can also produce L, T, and Z shaped pipes while reducing roller costs and ensuring finished pipe quality.

Production Process

Material (steel coil)
Uncoiler
Shear and welder
Horizontal (or cage) accumulator
Forming mill
HF solid welder
Sizing mill
Rough straightening (turkey head)
Cut off machine
Run out table

Technical Parameters

Parameter	Value
Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter	60-165mm
Round pipe thickness	2.0-5.0mm
Square pipe size	48×48-130×130mm
Square pipe thickness	2.0-4.0mm

ERW Tube Mill Model Specifications

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20

Note: These specifications are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your specific requirements.
