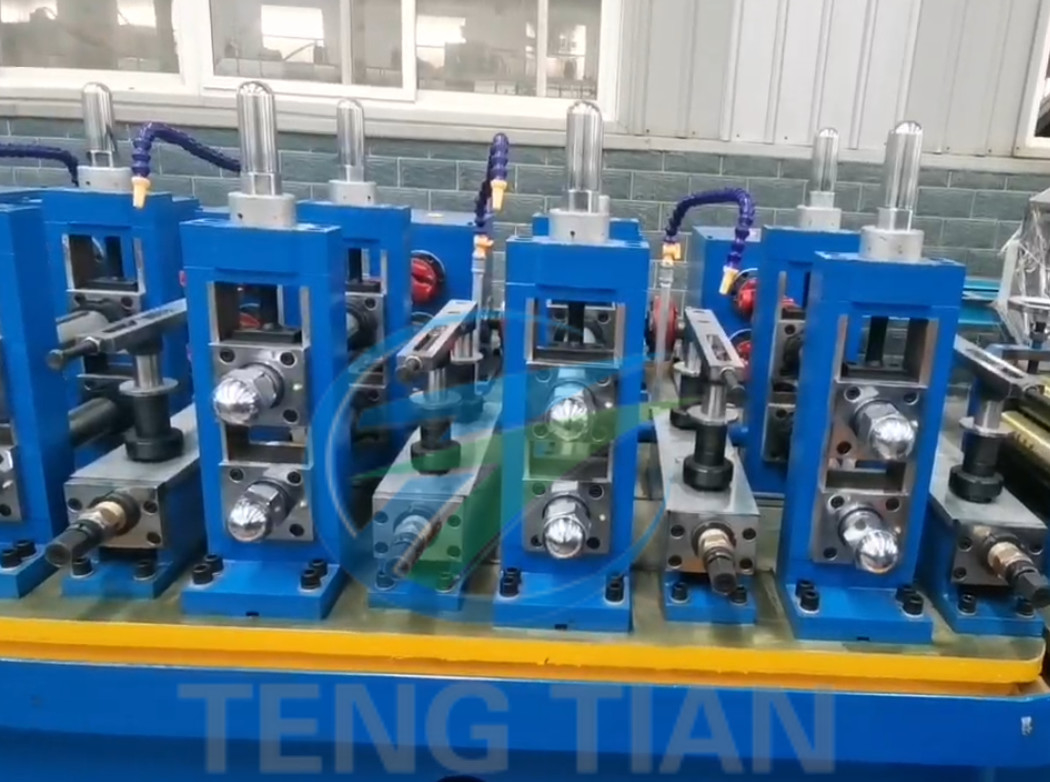

HG 24 Steel Pipe Manufacturing Machine 20-76mm Diameter 120m/min

Name: HG 24 Steel Pipe Manufacturing Machine 20-76mm Diameter 120m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: KJ76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	KJ76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

KJ76

Product Name:

HG 24 Steel Pipe Manufacturing Machine 0.8-4.5mm Thickness Round Pipe

Product Speed:

Max 120m/min

Pipe Diameter:

20-76mm

Pipe Thickness:

1.0-3.0mm

Type Of Welding:

High Frequency Welding

Kayword:

Steel Tube Manufacturing Machine

Highlight:

High Light

Highlight:

HG 24 Steel Pipe Manufacturing Machine

0.8mm steel pipe manufacturing machine

4.5mm steel pipe making machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

two month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

HG 24 Steel Pipe Manufacturing Machine 0.8-4.5mm Thickness Round Pipe

Product Specifications

Attribute	Value
Product Name	HG 24 Steel Pipe Manufacturing Machine 0.8-4.5mm thickness Round Pipe
Product Speed	Max 120m/min
Pipe Diameter	20-76mm
Pipe Thickness	1.0-3.0mm
Type of Welding	High Frequency Welding

Product Description

The HG 24 Steel Pipe Manufacturing Machine is essential equipment for steel pipe production lines. This automatic customized design machine primarily holds steel strips to make coils unfold, supplying raw material for the production line.

Key Features

Coordinates with coil loading car and end straightener in steel pipe production line
Guides steel strip into forming and sizing machine
Features linkage control to prevent steel strip from loosening during production
Available in double mandrel type, single mandrel type, and double cone type configurations

Tube Mill Production Process

Material (steel coil) → Uncoiler → Shear and Welder → Horizontal (or Cage) Accumulator → Forming Mill → HF Solid Welder → Sizing Mill → Rough Straightening (Turkey Head) → Cut Off Machine → Run Out Table

ERW Tube Mill Model Comparison

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20

Note: These models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your specific requirements.
