| Product Name: | Tube Mill Spiral Accumulator For Steel Pipe Manufacturing Machine | Product Speed: | Max 90m/min |
|---|---|---|---|
| Pipe Diameter: | Up To The Tube Mill Size | Pipe Thickness: | Up To The Tube Mill Size |
| Type Of Welding: | High Frequency Welding | Keyword: | Spiral Accumulator For Steel Pipe Manufacturing Machine |
| Highlight: | Steel Pipe Manufacturing Machine Spiral Accumulator,Tube Mill Spiral Accumulator,Steel Pipe Making Machine Spiral Accumulator |
||
Product Name

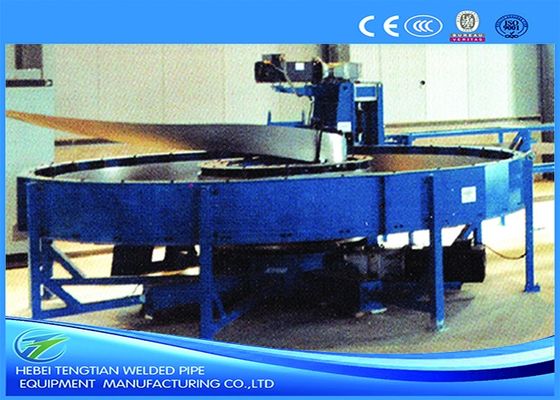

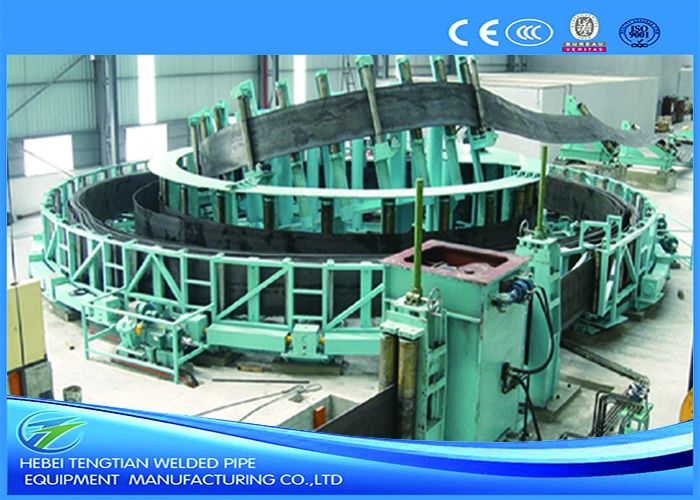

Tube Mill spiral Accumulator for Steel Pipe Manufacturing Machine
Brief Introduction
Through the world-famous brand, HeBei TengTian has long been recognized as one of the earlier pioneers in the welded seam tube mill business in China. The TengTian brand offers multiple standard tube mills for common product sizes. In addition to the standard machines, we also offers specialized equipment that covers a wide diameter range of metal tubes and pipes — from the 3/16″ (4.76mm) O.D. cold stretch reducing mills to the 28″ OD cage mills.
As required by the application for welding the tube or pipe, HeBei TengTian can also provide mills with high-frequency induction or contact welders, DC and AC Square Wave Welding (ERW).
Features
Tube Mill spiral Accumulator for Steel Pipe Manufacturing Machineis the steel pipe macking machine with advanced technical characteristics of the pipe products. The unit uses the world’s advanced W,FFX,FF Forming method, and the choice of the German Roll forming design.
Mills Tour:
Step 1 - Coils
There are carbon steels that are going to be made into pipe and tube for you
Step 2 - uncoiler
The carbon steel coil is placed on the uncoiler
Step 3 - Leveler
The coil stock is leveled
Step 4 - butt welding
Connect the last coil to next coil to uninterrupted forming&sizing
Step 5 - Mill
Then it goes through a series of rolls that form the flat steel into pipe
Step 6 - Mill Rollers
Rolls form this size schedule into shape
Step 7 - Welder
An Electirc Resistance Welder Finishes the pipe or tube
Step 8 - Scarfer
The seam is “scarfed” to make the pipe or tube smooth all the way around.
Step 9 - Saw
the pipe and tube is sawed cut to length
Step 10 - Collecting
Finally, collecting pipes and tubes for packing
Pipe Mill Machine List
| No. | Model | Pipe Size | Thickness | Speed(m/min) | Capacity(KW) | HF(KW) | Area(LxW ) |
| 1 | HG20 | ø8 - ø20 mm | 0.3 - 1.5 mm | 30 - 150 | 210 | 100 | 40*12 |
| 2 | HG32 | ø10 - ø32 mm | 0.4 - 2.0 mm | 30 - 150 | 300 | 150 | 40*12 |
| 3 | HG50 | ø16 - ø50 mm | 0.7 -2.5 mm | 30 - 150 | 410 | 200 | 60*12 |
| 4 | HG60 | ø22 - ø60 mm | 0.9 - 3.0 mm | 30 - 150 | 410 | 200 | 60*12 |
| 5 | HG76 | Ø25 - ø76 mm | 1 - 4 mm | 30 - 120 | 580 | 300 | 80*16 |
| 6 | HG89 | Ø32 - ø89 mm | 1 - 4.5 mm | 30 - 100 | 660 | 300 | 100*16 |
| 7 | HG114 | Ø45 - ø114 mm | 1.5 -5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 8 | HG140 | Ø50 - ø140 mm | 1.5 - 5.5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 9 | HG165 | Ø60 - ø165 mm | 2 - 6 mm | 30 - 60 | 1100 | 500 | 100*16 |
| 10 | HG219 | Ø114 - ø219mm | 3 - 8 mm | 20 - 45 | 1400 | 600 | 150*16 |
| 11 | HG273 | Ø114 - ø273mm | 4 - 12 mm | 15 - 30 | 2100 | 800 | 160*18 |
| 12 | HG325 | Ø165 - ø325 mm | 4 - 14 mm | 10 - 30 | 2500 | 1000 | 200*24 |
| 13 | HG426 | Ø165 - ø426 mm | 4 - 16 mm | 8 - 25 | 2900 | 1200 | 250*24 |
| 14 | HG508 | Ø219 - ø508 mm | 5 - 18 mm | 5 - 18 | 3400 | 1600 | 300*24 |
| 15 | HG610 | Ø355 - ø610 mm | 5 - 18 mm | 5 - 18 | 3700 | 1600 | 300*24 |
| 16 | HG760 | Ø426 - ø760 mm | 5 - 20 mm | 5 - 20 | 4300 | 1800 | 300*24 |
Reference Picture
