Tube Mill Spiral Accumulator for Steel Pipe Manufacturing 90m/min

Name: Tube Mill Spiral Accumulator for Steel Pipe Manufacturing 90m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HT32-165
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HT32-165

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HT32-165

Product Name:

Tube Mill Spiral Accumulator For Steel Pipe Manufacturing Machine

Product Speed:

Max 90m/min

Pipe Diameter:

Up To The Tube Mill Size

Pipe Thickness:

Up To The Tube Mill Size

Type Of Welding:

High Frequency Welding

Keyword:

Spiral Accumulator For Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

Steel Pipe Manufacturing Machine Spiral Accumulator

Tube Mill Spiral Accumulator

Steel Pipe Making Machine Spiral Accumulator

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

two month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

Tube Mill Spiral Accumulator For Steel Pipe Manufacturing Machine

Product Specifications

Attribute	Value
Product Name	Tube Mill spiral Accumulator for Steel Pipe Manufacturing Machine
Product Speed	Max 90m/min
Pipe Diameter	Up to the tube mill size
Pipe Thickness	Up to the tube mill size
Type of Welding	High frequency welding

Product Overview

Through the world-famous brand, HeBei TengTian has long been recognized as one of the earlier pioneers in the welded seam tube mill business in China. The TengTian brand offers multiple standard tube mills for common product sizes.

In addition to standard machines, we also offer specialized equipment covering a wide diameter range of metal tubes and pipes - from 3/16″ (4.76mm) O.D. cold stretch reducing mills to 28″ OD cage mills. As required by the application for welding the tube or pipe, HeBei TengTian can provide mills with high-frequency induction or contact welders, DC and AC Square Wave Welding (ERW).

Key Features

High precision pipe making
Stable performance
High yield production
Fully automated operation
Simple operation interface
Continuous production capability
High efficiency with minimal material waste
Low production cost

Manufacturing Process

Coils: Carbon steels prepared for pipe and tube production
Uncoiler: Carbon steel coil placement
Leveler: Coil stock leveling
Butt welding: Connecting coils for uninterrupted forming & sizing

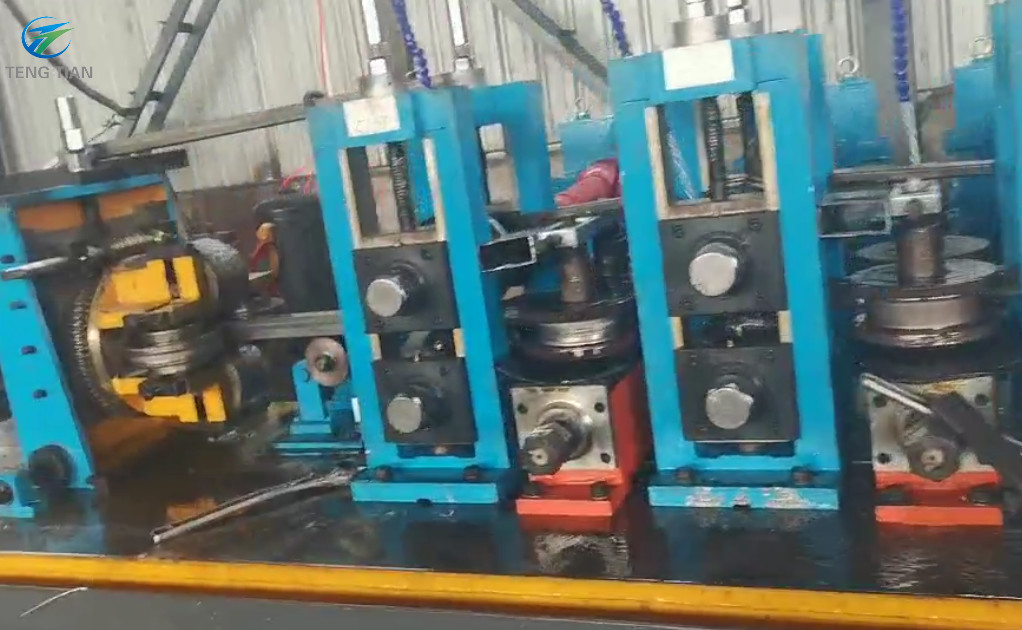

Mill: Forming flat steel into pipe through series of rolls
Mill Rollers: Shaping the size schedule
Welder: Electric Resistance Welder finishing the pipe or tube
Scarfer: Seam smoothing for uniform surface
Saw: Cutting pipe and tube to length
Collecting: Final collection of pipes and tubes for packing

Available Models

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24
