Precision Tube Mill ERW Pipe Machine 10-50mm Diameter 120m/min

Name: Precision Tube Mill ERW Pipe Machine 10-50mm Diameter 120m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG50

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG50

Product Name:

Precision Tube Mill Automatic ERW Pipe Mill Line Seamless Steel Tube Manufacturing Process

Pipe Diameter:

10-50mm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Product Speed:

Max 120m/min

Inspection:

100% Eddy Current Test

Running Speed:

Max. 60 M / Min

Main Motor Power:

22-75KW

Max Size:

140mm

Material:

Carbon Steel And Galvanized Steel

Welding Type:

H.F Solid Welder

Roller Material:

Cr12MoV

Cutting Length:

4 - 6 M

Adjustment Ty:

By Turbine Worm

Tube Thickness:

6-12.7MM

Other Pipe:

Only Square Pipe

Dimension:

20m*2m*1.5m

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Product Description

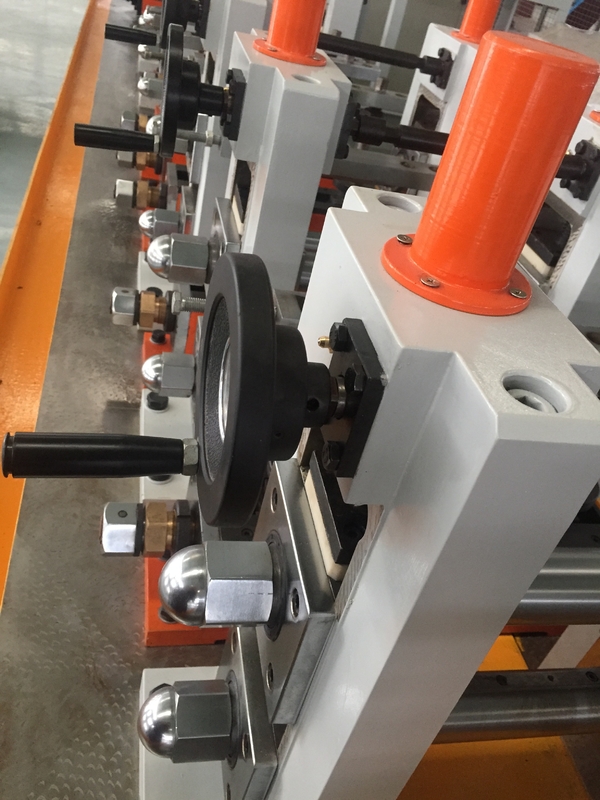

Precision Tube Mill Automatic ERW Pipe Mill Line

High Precision High Speed ERW Pipe Mill Machine

This mill is designed for manufacturing round pipes (Φ12mm-Φ38mm) with thickness of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strips. The process includes forming unclosed tubular blanks, high-frequency welding, seam welding, cooling, sizing/shaping, and on-stream cutting.

Product Specifications

Pipe Diameter	10-50mm
Welding Type	High frequency welding (H.F solid welder)
Material Compatibility	Carbon steel and galvanized steel
Max Product Speed	120m/min
Inspection Method	100% Eddy Current Test
Main Motor Power	22-75KW
Roller Material	Cr12MoV
Cutting Length	4-6m
Tube Thickness	6-12.7mm
Dimensions	20m × 2m × 1.5m

Key Advantages

Exceptional precision: level roller jumps ≤0.01mm, frame/slide clearance ≤0.02mm
Superior frame alignment: vertical degree ≤0.05, parallel degree ≤0.1mm
Minimal dimensional error: pipe diameter and roundness error ≤0.08mm
Customizable design to meet specific customer requirements

Production Process

Steel coil → Uncoiler → Shear and welder → Horizontal accumulator → Forming mill → HF solid welder → Sizing mill → Rough straightening → Cut-off machine → Run out table

Technical Parameters

Parameter	Value
Forming Mill Stands	7
Sizing Mill Stands	5
Shaft Material	40Cr
Round Pipe Diameter	19-76mm
Round Pipe Thickness	1.5-3.0mm
Square Pipe Size	15×15-60×60mm
Square Pipe Thickness	1.5-2.0mm

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair support
Comprehensive pre-sales and after-sales service
Project design consultation for pipe production facilities
Option for extended engineer support (months to 1 year)
Assistance with loading and shipping arrangements
