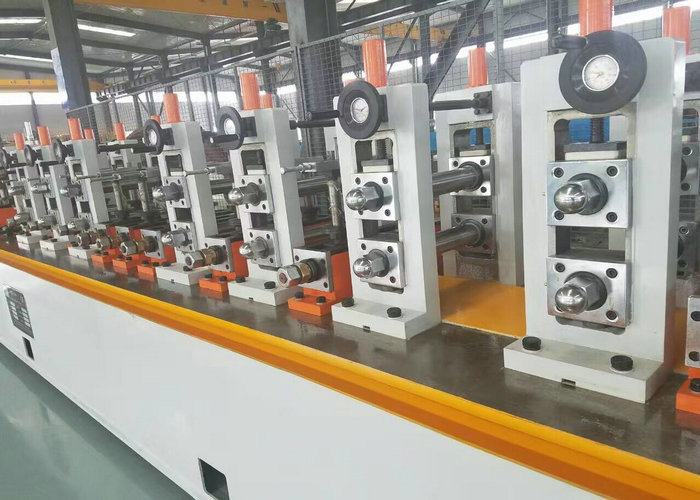

Precision Tube Mill Machine for 25-76mm Round Square Rectangular Pipes

This mill is designed for manufacturing round pipes (Φ12mm-Φ38mm) with thickness of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strip. The process involves forming unclosed tubular blanks, welding them into tubes using high-frequency welding, cooling, sizing/shaping, and cutting to measured lengths.

• Precision level roller jumps: 0.01mm
• Frame and slide clearance: ≤0.02mm
• Frame vertical degree: ≤0.05mm
• Frame parallel degree: ≤0.1mm
• Steel pipe diameter and roundness error: ≤0.08mm

Material (steel coil) → Uncoiler → Shear and welder → Horizontal (or cage) accumulator → Forming mill → HF solid welder → Sizing mill → Rough straightening (turkey head) → Cut off machine → Run out table

We can customize the machine according to specific customer requirements.

KJ Series Straight Seam High Frequency Steel ERW pipe mill lines manufacture welded steel pipes with diameter range from Φ7mm-Φ219mm and wall thickness range of 0.2mm-8.0mm. They can also produce profiled pipes (square, rectangular, oval) within round pipe processing limits.

Our innovative production line combines domestic and international pipe making technology for economical yet practical solutions.

Low carbon steel, low alloy steel, galvanized steel, stainless steel, and more.

• On-site engineer support for installation and operator training
• One year quality guarantee with lifetime repair support
• Comprehensive pre-sale and after-sale services including workshop design and production output planning
• Option for extended engineer support (several months to 1 year) to optimize output and reduce waste
• Complete project design services for stainless steel/carbon steel pipe production
• Full responsibility for loading and shipping arrangements
