Square Tube Mill
>

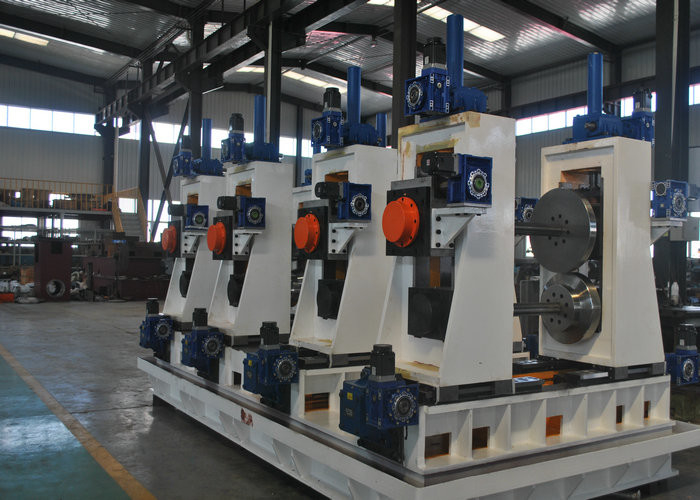

Full Automatic ERW Square Tube Mill Line 30-80m/min Carbon Steel
  • Full Automatic ERW Square Tube Mill Line 30-80m/min Carbon Steel
  • Full Automatic ERW Square Tube Mill Line 30-80m/min Carbon Steel
  • Full Automatic ERW Square Tube Mill Line 30-80m/min Carbon Steel
  • Full Automatic ERW Square Tube Mill Line 30-80m/min Carbon Steel
  • Full Automatic ERW Square Tube Mill Line 30-80m/min Carbon Steel

Full Automatic ERW Square Tube Mill Line 30-80m/min Carbon Steel

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: LW200
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE ISO
Model Number:
LW200
Pipe Material:
Carbon Steel
Application:
Energy Supply Pipe
Production Capacity:
30-80m/min
Voltage:
220/380/415/420/440V
Weight:
>2T
Type Of Welding:
High Frequency Welding
Product Speed:
Max 80m/min
Special Require:
Can Design According To The Customer
Highlight:

High Light

Highlight:

square pipe making machine

,

tube mill line

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
packed in seaworthy material
Delivery Time:
three months
Payment Terms:
Western Union,L/C,T/T
Supply Ability:
150set per year
Product Description
Full Automatic Square Tube Mill Line ERW Pipe Making Machine 30-80m/min
Product Specifications
Attribute Value
Pipe Material Carbon Steel
Application Energy Supply Pipe
Production Capacity 30-80m/min
Voltage 220/380/415/420/440V
Weight >2T
Type of Welding High Frequency Welding
Product Speed Max 80m/min
Special Requirements Can design according to customer specifications
Product Description

This full-automatic ERW steel tube mill/pipe mill line represents China's first fully automatic pipe making machine designed to meet international market requirements. Combining our LW series unit with FF forming technology, this equipment produces automatic square and rectangular tubes while also capable of manufacturing various open cold bend steel profiles (U, C section steel, etc.) with infinitely adjustable width and height dimensions.

Key Features
  • Rapid roller adjustment capability
  • Quick specification change capability for different tube sizes
  • Reduced labor requirements and operational costs
  • Extended equipment service life
  • Modular repair capability
Machine Components
  • Forming Section: 7 horizontal roll racks, 4 empty curving racks, 4 vertical roll racks, and 1 feeding rack
  • Welding Section: 5 extruding rollers, 2 scraping scar racks, and 1 polish rack
  • Shaping Section: 4 four-roller racks
  • Control System: Multi-point PLC control
Production Process
material(steel coil) → uncoiler → shear and welder → horizontal(or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening(turkey head) → cut off machine → run out table
Technical Parameters

Stands of forming mill: 7

Stands of sizing mill: 5

Square pipe size range: 30×30-50×50mm

Square pipe thickness range: 1.0-3.0mm

Available Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
LW200 30*30-50*50MM 1-3MM 20-80
LW600 60*60-150*150MM 2-7MM 20-60
LW800 80*80-200*200MM 1-3MM(or 4-13) 20-40
LW1000 100*100-250*250MM 3-12.7MM(or4-14) 15-30
LW1200 120*120-300*300MM 3-14MM 10-25
LW1400 150*150-350*350MM 4-14MM 8-20
LW1600 200*200-400*400MM 4-16MM 8-20
Note: Specifications shown are for reference only. Product range and thickness are adjustable. Our engineering team can design custom machines to meet specific customer requirements.
