| Pipe Material: | Carbon Steel | Application: | Energy Supply Pipe |
|---|---|---|---|
| Production Capacity: | 30-80m/min | Voltage: | 220/380/415/420/440V |
| Weight: | >2T | Type Of Welding: | High Frequency Welding |
| Product Speed: | Max 80m/min | Special Require: | Can Design According To The Customer |
| High Light: | square pipe making machine,tube mill line |
||

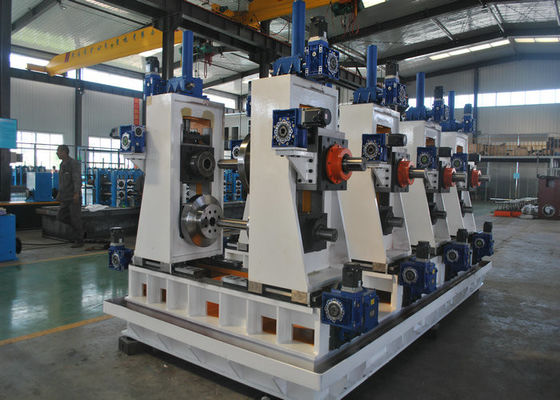

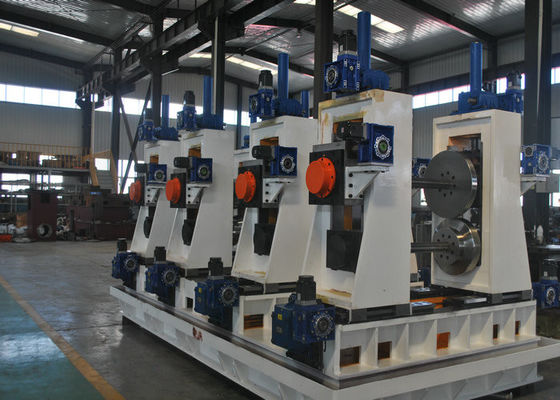

full-automatic ERW steel tube mill/pipe mill line is the first full-automatic pipe making machine in china to meet the requirements of the international market, according to our company LW series unit combined with FF forming technology, developed the automatic square and rectangular tube equipment. The pipe making machine can produce a certain specification of opening cold bend steel, such as U,C section steel etc., width and height of the product can be adjusted infinitely. The steel making machine is used to scale to cut off the steel tubes, the incision level off, smooth, without burr, scale with high precision.
The pipe machine’s main characteristics of the equipment:
1. In a very short period of time to finish the adjustment of the roller
2. producing the different specifications of the tube, only need to adjust
3. decreasing the number of workers, reduce the labor costs
4. improve the service life of the equipment.
5. The machine can be repaired alone.
welded pipe making machine consists of the following parts:
1.Forming parts: Consist of seven frame of horizontal roll rack, four frame of empty curving rack, four frame of vertical roll rack and one frame of feeding rack
2.Welding parts: consists of welding five roller of extruding roll, two frame of scraping scar rack and one frame of polish rack
3.Sharping parts: consists of four frame of four roller rack
4.Electric control part: controlled by multipoint PLC control
Product Process:
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→
HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
The Basic Parameters:
| stands of forming mill | 7 |
| stands of sizing mill | 5 |
| square pipe size | 30×30-50×50mm |
| square pipe thickness | 1.0-3.0mm |
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| LW200 | 30*30-50*50MM | 1-3MM | 20-80 |
| LW600 | 60*60-150*150MM | 2-7MM | 20-60 |
| LW800 | 80*80-200*200MM | 1-3MM(or 4-13) | 20-40 |
| LW1000 | 100*100-250*250MM | 3-12.7MM(or4-14) | 15-30 |
| LW1200 | 120*120-300*300MM | 3-14MM | 10-25 |
| LW1400 | 150*150-350*350MM | 4-14MM | 8-20 |
| LW1600 | 200*200-400*400MM | 4-16MM | 8-20 |
This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
