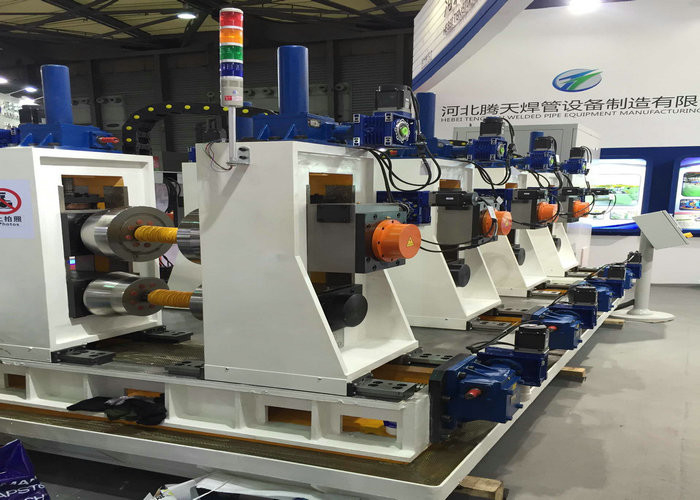

Servo Automatic Adjustment Square Tube Mill 30x30-50x50mm

Name: Servo Automatic Adjustment Square Tube Mill 30x30-50x50mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LW200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	LW200

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

LW200

Mill Name:

Servo Automatic Adjustment Pipe Making Machine Square Tube Mill

Product Speed:

Max 80m/min

Special Require:

Can Design According To The Customer

Production Capacity:

1-10m/min

Voltage:

220/380/415/420/440V

Weight:

>2T

Highlight:

High Light

Highlight:

square pipe making machine

tube mill line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

Western Union,L/C,T/T

Supply Ability:

50set per year

Product Description

Servo Automatic Adjustment Pipe Making Machine Square Tube Mill

Product Specifications

Attribute	Value
Mill Name	Servo Automatic Adjustment Pipe Making Machine Square Tube Mill
Product Speed	Max 80m/min
Special Requirements	Can design according to customer specifications
Production Capacity	1-10m/min
Voltage	220/380/415/420/440V
Weight	>2T

Machine Components

Forming parts: Seven frame horizontal roll rack, four frame empty curving rack, four frame vertical roll rack, and one frame feeding rack
Welding parts: Five roller extruding roll, two frame scraping scar rack, and one frame polish rack
Sharping parts: Four frame four roller rack
Electric control: Multipoint PLC control system

Production Process

material(steel coil) → uncoiler → shear and welder → horizontal(or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening(turkey head) → cut off machine → run out table

Technical Parameters

Parameter	Value
Stands of forming mill	7
Stands of sizing mill	5
Square pipe size	30×30-50×50mm
Square pipe thickness	1.0-3.0mm

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
LW200	3030-5050MM	1-3MM	20-80
LW600	6060-150150MM	2-7MM	20-60
LW800	8080-200200MM	1-3MM (or 4-13)	20-40
LW1000	100100-250250MM	3-12.7MM (or4-14)	15-30
LW1200	120120-300300MM	3-14MM	10-25
LW1400	150150-350350MM	4-14MM	8-20
LW1600	200200-400400MM	4-16MM	8-20

Note: Product range and thickness are adjustable. Our engineering team can design machines according to customer specifications.

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair service
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for long-term engineer support (several months to 1 year) to optimize production
Complete project design for stainless steel/carbon steel pipe making
Responsible for loading and shipping arrangements
