Hydraulic Steel Tube Making Machine for C Z U Purlin 1-3mm

Name: Hydraulic Steel Tube Making Machine for C Z U Purlin 1-3mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LW Series
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001 / BV
Model Number:	LW Series

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001 / BV

Model Number:

LW Series

Cutting Type:

Hydraulic

Thickness:

1.0-3.0mm

Shape:

C Z U Purlin

Raw Material Thickness:

2 - 20mm

Forming Method:

Cold Roll Forming

Colour:

Blue

Highlight:

High Light

Highlight:

Customizable steel tube making machine

fast speed steel pipe making machine

Customizable steel pipe making machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

60 workind days

Supply Ability:

20 Sets / year

Product Description

Customizable Steel Pipe Making Machine Fast Speed

Product Specifications

Attribute	Value
Cutting type	Hydraulic
Thickness	1.0-3.0mm
Shape	C Z U Purlin
Raw Material Thickness	2 - 20mm
Forming Method	Cold Roll Forming
Colour	Blue

Customizable Steel Tube Making Machine for Your Pipe and Tube Manufacturing Needs

Manufacturing Process

Coils: Carbon steels prepared for pipe and tube production
Uncoiler: Carbon steel coil placement
Leveler: Coil stock leveling

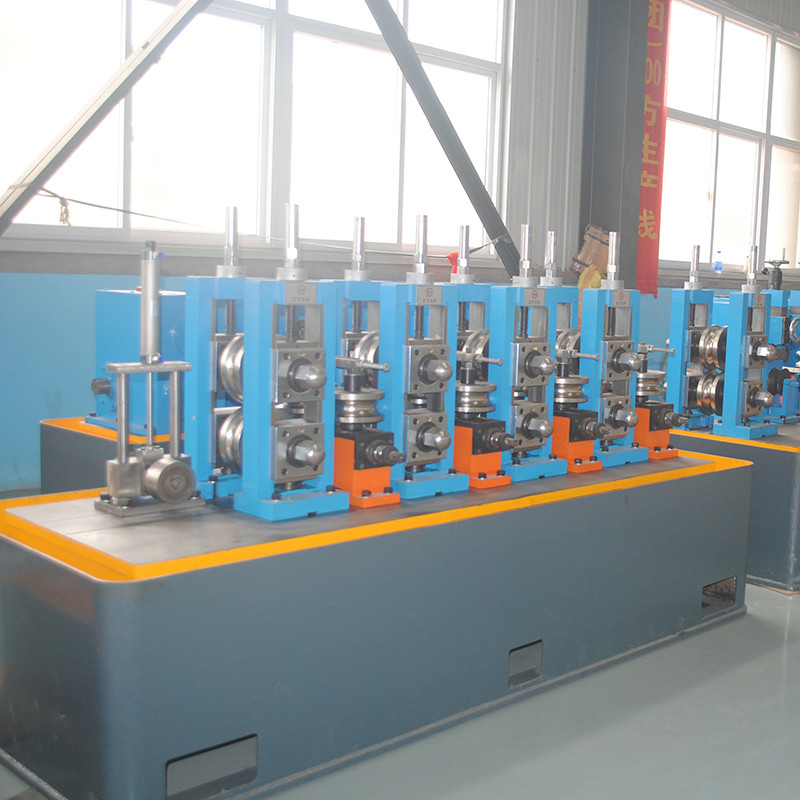

Mill: Flat steel formed into pipe through series of rolls
Mill Rollers: Shape formation
Welder: Electric Resistance Welder completes pipe/tube
Scarfer: Seam smoothing
Saw: Pipe/tube cut to length

Available Models

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12 M
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12 M
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12 M
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12 M
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16 M
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16 M
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16 M
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16 M
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16 M
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16 M
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18 M
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24 M
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24 M
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24 M
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24 M
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24 M

Technical Parameters

Applicable Industries	Hotels, Manufacturing Plant, Construction Works, Energy & Mining
Showroom Location	United States, Italy, Pakistan, India, Russia, Thailand, Tajikistan
Video Outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of Core Components	1 Year
Core Components	Engine, Gearbox, Motor, Gear
Condition	New
Type	Pipe Production Line
Pipe Material	Carbon steel
Application	Energy Supply Pipe
Production Capacity	30-80m/min
Place of Origin	Hebei, China
Brand Name	Tengtian
Voltage	380V
Power	400KW
Dimension(LWH)	40m3m2m
Weight	20000kg
Warranty	1 Year
Key Selling Points	High-accuracy
After-sales Service Provided	Engineers
Pipe Length	6-12m
Pipe Diameter	20-60mm
Pipe Thickness	0.8-2.0mm
Welding Method	High Frequency Welding
Material	Carbon Steel, Stainless Steel, Alloy Steel
Service Treatment	Pickling, Passivation, Polishing, Anodizing, Plating, Coating
Forming Process	Roll Forming

As an ISO9001:2008 certified manufacturer of cold rolled section steel forming machines in China, we prioritize product quality through experienced staff, advanced technology, and strict quality inspections at every production stage. We also manufacture other tube making machines including pipe making machines and precision pipe mills.

Our Services

Engineer dispatch for installation and operator training
One year quality guarantee with life guarantee repair
Pre-sell services including workshop and production output design
After-sell services including installation, training, and technical support
Option for extended engineer support (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe making
Responsibility for loading and shipping
