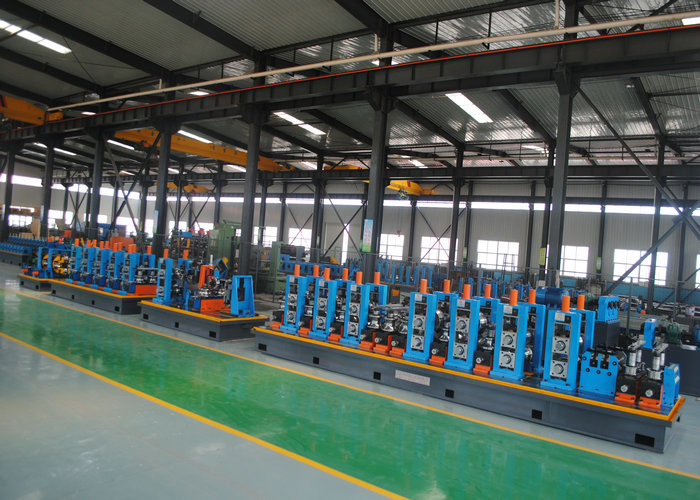

Carbon Steel ERW Tube Mill 21-63mm High Frequency Welding Line

This high-performance ERW pipe production line is designed for manufacturing welded steel pipes with diameters ranging from 32mm to 140mm and wall thicknesses from 1.0mm to 5.0mm. Capable of producing both round and square pipes, this line incorporates advanced technology for precision forming and high-frequency welding.

• Voltage: 220/380/415/420/440V
• Power: 90KW
• Dimensions: 38m × 1.8m × 3.5m
• Weight: 15T
• Certification: ISO9001:2008
• Warranty: 1 Year
• Production Capacity: 20-80m/min

• High precision with level roller jumps ≤0.01mm
• Incorporates Japanese technology for high accuracy requirements
• Worm gear adjustment system for precise control
• 3D adjustable scraping system with ±20° rotation capability
• Turkish head push square system for stable forming
• Nylon damping blocks reduce impact on shafts and bearings

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

• H.F. Welder: GGP300Kw Solid State High Frequency Welder
• Line Speed: Max. 70m/min
• Tube Length: 6-12m
• Cutting Accuracy: ±3mm
• Electric Installed Capacity: Approx. 500KW
• Line Dimensions: About 80m × 9m

• On-site engineer support for installation and operator training
• One-year quality guarantee with life-long repair service
• Comprehensive pre-sales and after-sales support
• Workshop and production output design services
• Extended engineer support available (months to 1 year)
• Complete project design for stainless/carbon steel pipe production
• Responsible for loading and shipping arrangements
