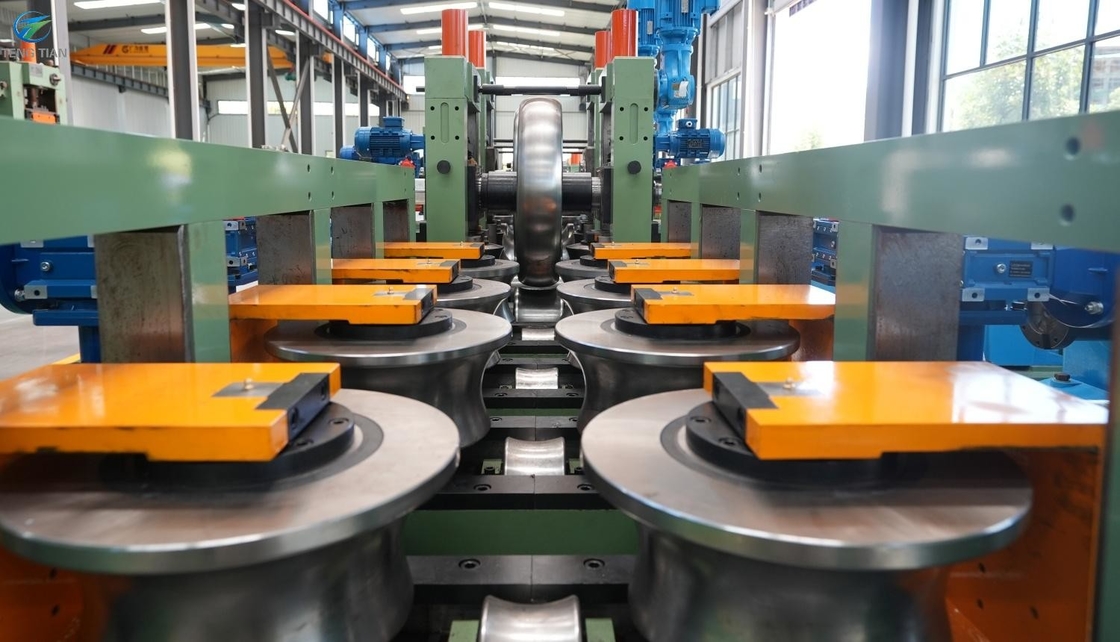

Decorative Window Steel Pipe Machine HF Welding 150m/min

Name: Decorative Window Steel Pipe Machine HF Welding 150m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: TT-12mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI，CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO 9001/BV
Model Number:	TT-12mm

Detail Information

Place of Origin:

HEBEI，CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO 9001/BV

Model Number:

TT-12mm

Product Name:

Decorative Window Steel Pipe Making Machine For Round Pipe

Welding Type:

H.F. Welding

Mill Speed:

Max.150m/min

Raw Material:

Aluminum Strip

Driving:

Servo Motor

Color:

Gray

Weight:

Keyword:

Decorative Window Steel Pipe Tube Production Line

Highlight:

High Light

Highlight:

Decorative Window Steel Pipe Manufacturing Machine

Round Steel Pipe Manufacturing Machine

Decorative Window Steel Pipe Making Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

1 Months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

100 Sets / Year

Product Description

Decorative Window Steel Pipe Manufacturing Machine For Round Pipe

Product Specifications

Attribute	Value
Product Name	Decorative Window Steel Pipe Making Machine for Round Pipe
Welding Type	H.F. Welding
Mill Speed	Max. 150m/min
Raw Material	Aluminum Strip
Driving	Servo Motor
Color	Gray
Weight	5T

Product Overview

Condition: New
Type: Pipe Welding Machine
Pipe Material: Carbon Steel
Application: Energy Supply Pipe
Production Capacity: 30-80m/min
Place of Origin: Hebei, China (Mainland)
Brand Name: GH
Model Number: ZG60
Voltage: 220/380/415/420/440V
Power: 290kw
Dimension: 55m × 4.5m
Weight: 5 Tons
Certification: CE ISO
Warranty: 1 Year
After-sales Service: Engineers available to service machinery overseas
Pipe Shape: Round and Square
Item: High Frequency Welded Pipe Mill
Pipe Diameter: 19.05~76.2mm
Thickness: 0.8~3.0mm
Usage: Construction Pipe

Product Description

This decorative window steel pipe tube production line for round pipe is specially designed for producing Φ19.05-Φ76.2mm, δ0.8-3.0mm high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe (δ≤2.5mm). The complete equipment setup includes components from uncoiler to fixed length cutting saw. Rolling speed can be adjusted within the suitable range for specific pipe diameter and wall thickness.

Applicable Material

Hot or cold-rolled steel strip (As per GB708-88 or GB1591-88)
Material: Low-carbon steel, low alloy steel δs≤345Mpa, δb≤610Mpa
Thickness of steel strip: 0.8-3.0mm (As per GB708-88)
Width of steel strip: 60-240mm
I.D. of steel coil: Φ450-Φ550mm
O.D. of steel coil: Φ800-Φ1200mm
Maximum weight coil: 3000kgs

Dimension Range of Processing Steel Tube

O.D.: Φ19.05-Φ76.2mm
Square pipe size: 18x18~60x60mm
Rectangle pipe size: 15x20~40x80mm
Wall thickness: 0.8-3.0mm (square pipe and special-shaped pipe δ≤2.5mm)
Length: 4-8m
Milling speed: 30-80M/min (adjustable based on pipe diameter and thickness)

Product (Steel Tube) Process Flow

Raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube

Technical Specifications

Model	(A) Width of Section	(H) Height of Section	Length
6mm	5.5mm	6.5mm	5m
8mm	7.5mm	6.5mm	5m,6m
9mm	8.5mm	6.5mm	5m,6m
10mm	9.5mm	6.5mm	5m,6m
12mm	11.5mm	6.5mm	5m,6m
14mm	13.5mm	6.5mm	5m,6m
15mm	14.5mm	6.5mm	5m,6m
16mm	15.5mm	6.5mm	5m,6m
18mm	17.5mm	6.5mm	5m,6m
19mm	18.5mm	6.5mm	5m,6m
20mm	19.5mm	6.5mm	5m,6m
22mm	21.5mm	6.5mm	5m,6m
24mm	23.5mm	6.5mm	5m,6m
26mm	25.5mm	6.5mm	5m,6m
29mm	28.5mm	6.5mm	5m,6m
32mm	31.5mm	6.5mm	5m,6m

Our Services

Engineer support for installation and worker training
One year quality guarantee with lifetime repair service
Pre-sale and after-sale service including workshop design and production output design
Option for extended engineer support (several months to 1 year) to improve output and reduce waste
Complete project design service for stainless steel/carbon steel pipe making
Responsible for loading and shipping

Tengtian Tube Mill Co., Ltd. is a professional manufacturer specializing in high frequency welded pipe equipment and opening cold bend steel equipment. Our company integrates scientific research, production, sales and service. We produce high-frequency welded pipe, slitting, opening of cold bend steel, stainless steel and other equipment units. Our products incorporate advanced Japanese technology and manufacturing standards, featuring advanced configuration, stable quality, excellent performance, and strong market reputation.

With strong technical capabilities and business expertise, our products have gained significant domestic market share and are exported to dozens of countries including Korea, Vietnam, Indonesia, South Africa, and Kazakhstan. We are committed to product quality and service excellence, offering comprehensive pre-sale and after-sale services to ensure customer satisfaction.
