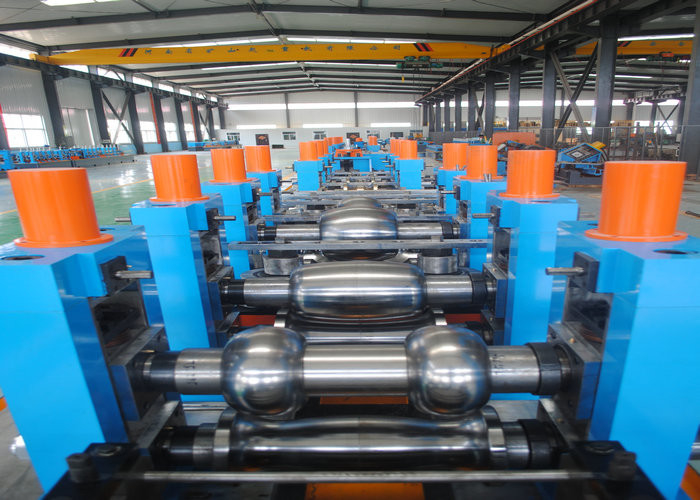

ERW Pipe Welding Machine 32-114mm Diameter DC Speed Control

This advanced production line manufactures welded steel pipes from Φ32mm-Φ140mm with wall thickness of 1.0mm-5.0mm, capable of producing square pipes from 25×25mm to 110×110mm. Combining international and domestic pipe making technologies, our innovative design offers both economic and practical advantages.

The complete line consists of three main sections:

• Entry Section: Uncoiling, flattening, and preparing steel strips
• Forming & Welding Section: Cold forming, high-frequency welding, and sizing
• Cutting & Delivery: Precision cutting and final product handling

• Exceptional precision with level roller jumps ≤0.01mm and diameter/roundness error ≤0.08mm
• Japanese technology implementation for high accuracy requirements
• Worm gear adjustment system for precise, energy-efficient operation
• 3D adjustable scraping system with ±20° rotation capability
• Turkish head push square forming for stable operation and uniform angles
• Nylon damping blocks reduce impact on shafts and bearings

• GGP300Kw Solid State High Frequency Welder
• Max line speed: 70m/min
• Tube length: 6-12m (±3mm cutting accuracy)
• Total installed capacity: approx. 500KW
• Line dimensions: approximately 80×9m

• On-site installation and operator training by our engineers
• One-year quality guarantee with lifetime repair support
• Pre-sales services including workshop and production design
• After-sales technical support and engineering assistance
• Optional long-term engineering support (months to 1 year)
• Complete project design for stainless/carbon steel pipe production
• Full loading and shipping responsibility
