Precision Tube Mill High Frequency Welding Stainless Steel Pipe 120m/min

Name: Precision Tube Mill High Frequency Welding Stainless Steel Pipe 120m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG50

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG50

Product Name:

Precision Tube Mill High Precision Handrail Stainless Steel Pipe / Tube Mill Speed 20m/min

Adjustment Ty:

By Turbine Worm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Product Speed:

Max 120m/min

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Product Description

Precision Tube Mill High Precision Handrail Stainless Steel Pipe / Tube Mill

Product Specifications

Attribute	Value
Adjustment Type	By turbine worm
Type of Welding	High frequency welding
Customization	Can design according to customer requirements
Maximum Speed	120m/min

Product Description

This high precision handrail stainless steel pipe/tube mill processes raw steel plate material to produce uniform, parallel products with excellent dimensional accuracy.

Key Features

Shaft material: 45# steel adjustable treatment
Rollers material: 45# steel, polished, chrome plated (0.05mm)
Shaft diameter: 60mm
Power: 101kW
Drive system: Motor with chain drive
Forming speed: 20m/min
Welded sheet structure maintains product shape and precision
Chromed rollers ensure smooth molding plate surface

Cutting System

Advanced hydraulic drive with automatic cutting
Prevents distortion and material waste
High safety factor
Automatic location for precise dimension control
Blade material: Cr12 quenched steel
Hydraulic power supply

Precision Advantages

Between level roller jumps: 0.01mm

Between frame and slide clearance: ≤0.02mm

Frame vertical degree: ≤0.05mm

Each frame parallel degree: ≤0.1mm

Steel pipe diameter and roundness error: ≤0.08mm

Production Process

Material (steel coil) → Uncoiler → Shear and welder → Horizontal (or cage) accumulator → Forming mill → HF solid welder → Sizing mill → Rough straightening (turkey head) → Cut off machine → Run out table

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

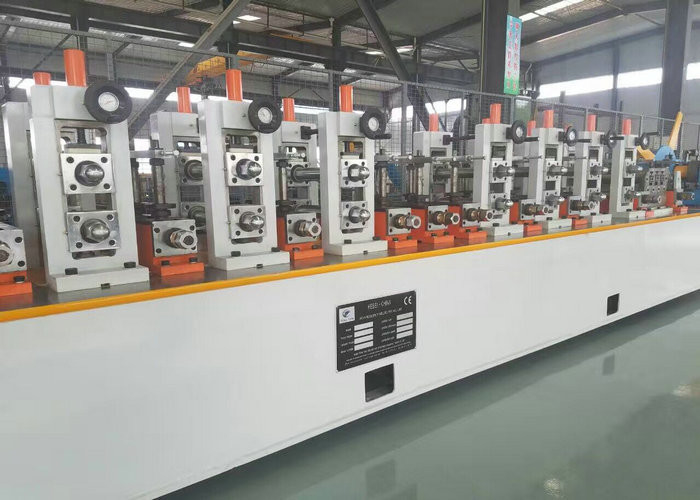

Product Images

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with life guarantee repair
Pre-sell services including workshop and production output design
After-sell services including installation, training, and technical support
Option for extended engineer support (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe making
Responsible for loading and shipping arrangements
