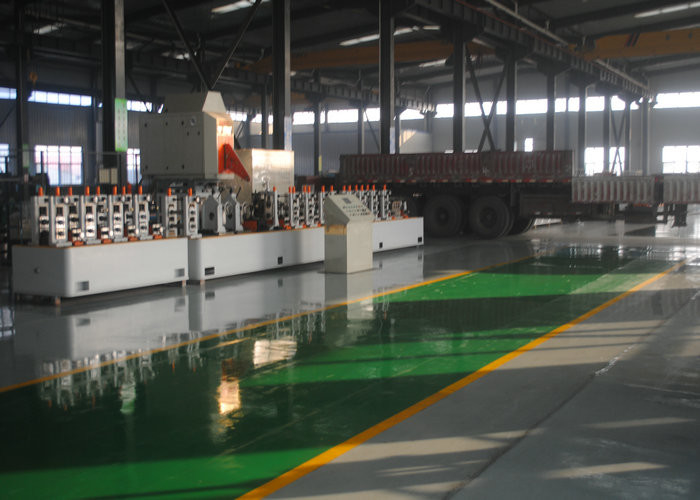

Precision Tube Mill 40-219mm High Frequency Welding 120m/min

Name: Precision Tube Mill 40-219mm High Frequency Welding 120m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG50

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG50

Product Name:

Precision Tube Mill High Accuracy Welded Tube Mill Adjustment By Turbine Worm

Adjustment Ty:

By Turbine Worm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Product Speed:

Max 120m/min

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Product Description

Precision Tube Mill High Accuracy Welded Tube Mill Adjustment by Turbine Worm

Product Specifications

Attribute	Value
Adjustment Type	By turbine worm
Type of Welding	High frequency welding
Customization	Can design according to customer requirements
Maximum Speed	120m/min

Product Overview

High quality, high precision welding tube mill manufactured in China with advanced technology and reliable performance.

Key Features

New condition pipe production line for energy supply pipes
Material: Carbon Steel
Production Capacity: 5 sets per month
Brand: KJMAC (Model: KJ219)
Voltage: 220/380/440/660V 50/60HZ
Power: 300-600kw
Certifications: CE, ISO
Warranty: 1 Year
Diameter Range: 40-219mm
Wall Thickness: 2.0-8.0mm
Speed: 15-50 M/min

Technical Specifications

KJ Series Straight Seam High Frequency Steel ERW pipe mill lines manufacture welded steel pipes with diameter range from Φ7mm-Φ219mm and wall thickness range 0.2mm-8.0mm. Capable of producing profiled pipes including square, rectangular, and oval pipes.

Precision Advantages

Level roller jumps: 0.01mm
Frame and slide clearance: ≤0.02mm
Frame vertical degree: ≤0.05mm
Frame parallel degree: ≤0.1mm
Pipe diameter and roundness error: ≤0.08mm

Production Process

Material (steel coil) → Uncoiler → Shear and welder → Horizontal accumulator → Forming mill → HF solid welder → Sizing mill → Rough straightening → Cut off machine → Run out table

Basic Parameters

Parameter	Value
Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter	19-76mm
Round pipe thickness	1.5-3.0mm
Square pipe size	15×15-60×60mm
Square pipe thickness	1.5-2.0mm

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40

Compatible Materials

Low carbon steel, low alloy steel, galvanized steel, stainless steel, and other compatible materials.

Our Services

On-site installation and operator training by our engineers
1-year quality guarantee with lifetime repair support
Pre-sales services including workshop and production output design
After-sales services including installation, training, and technical support
Option for extended engineer support (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe making
Responsible for loading and shipping arrangements

Note: All specifications can be customized according to customer requirements.
