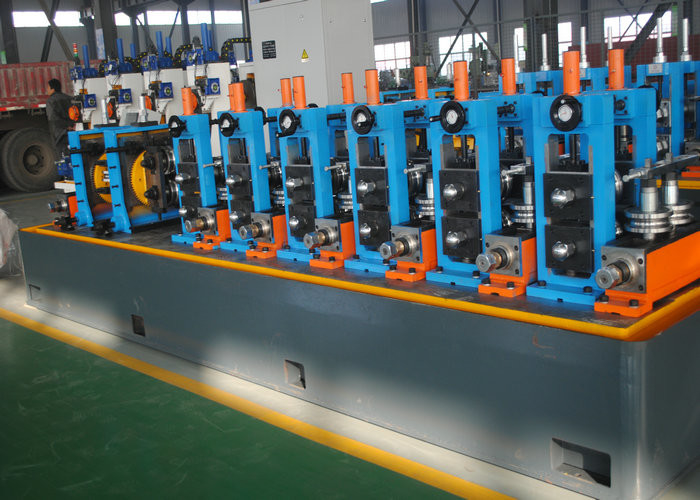

Precision Tube Mill 101kw High Frequency Welding 120m/min

Name: Precision Tube Mill 101kw High Frequency Welding 120m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG50

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG50

Product Name:

Precision Tube Mill Customized 101kw Seamless Precision Tube Mill With Small Tolerance

Adjustment Ty:

By Turbine Worm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Product Speed:

Max 120m/min

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Product Description

Precision Tube Mill Customized 101kw Seamless Precision Tube Mill With Small Tolerance

Product Specifications

Attribute	Value
Adjustment Type	By turbine worm
Type of Welding	High frequency welding
Special Requirements	Can be designed according to customer specifications
Product Speed	Max 120m/min

Product Overview

Type: Pipe Welding Machine, Pipe Production Line
Pipe Material: Carbon Steel
Application: Energy Supply Pipe
Production Capacity: 0-90m/min
Power: 101kw (customizable)
Certification: ISO9001, CE, ISO9001:2008
Warranty: 1 year with two-year free warranty option

Precision Capillary Pipe Making Machine

This precision pipe making machine maintains strict tolerances throughout design, manufacturing, and operation. The overall system error cannot exceed ±0.2mm, with finished pipe error limited to ±0.02mm. Precision pipe machines are categorized by diameter size, with 16mm typically serving as the watershed between large and small diameter systems.

Key Advantages

Level roller jumps: 0.01mm
Frame and slide clearance: ≤0.02mm
Frame vertical degree: ≤0.05mm
Frame parallel degree: ≤0.1mm
Steel pipe diameter and roundness error: ≤0.08mm

Production Process

Material (steel coil) → Uncoiler → Shear and Welder → Horizontal/Cage Accumulator → Forming Mill → HF Solid Welder → Sizing Mill → Rough Straightening (Turkey Head) → Cut Off Machine → Run Out Table

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80

Our Services

On-site installation and operator training by our engineers
One-year quality guarantee with lifetime repair support
Pre-sale services including workshop and production output design
After-sale services including installation, training, and technical support
Option for extended engineer support (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe making
Responsible for loading and shipping arrangements

All machines can be customized according to specific customer requirements.
