Precision Tube Mill for Round Square Pipe Making Max 120m/min

Name: Precision Tube Mill for Round Square Pipe Making Max 120m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG50

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG50

Product Name:

Precision Tube Mill Metal Steel Round / Square Pipe Making Machine High Speed Max 120m/min

Adjustment Ty:

By Turbine Worm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Product Speed:

Max 120m/min

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Product Description

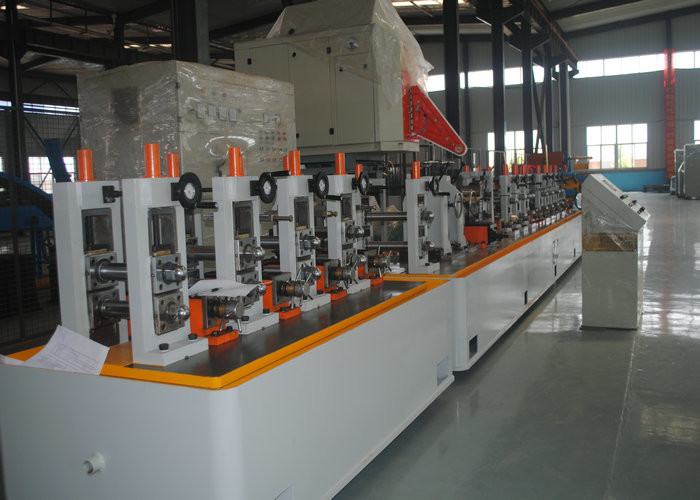

Precision Tube Mill Metal Steel Round/Square Pipe Making Machine

Key Features

High speed operation up to 120m/min
Precision adjustment by turbine worm
High frequency welding technology
Customizable design according to customer requirements
Produces round, square, oval, and rectangular pipes
ISO9001:2008 certified with 1-year warranty

Technical Specifications

Type	Pipe Mill
Pipe Material	Stainless Steel
Production Capacity	1-5m/min
Voltage	220/380/415/420/440V
Power	15kw
Dimensions (L×W×H)	26×1.4m
Weight	9t
Pipe Diameter Range	38.1-114mm
Thickness Range	0.5-3.0mm

Product Description

This high-precision tube mill is designed for manufacturing round pipes of Φ12mm-Φ38mm with thickness of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strip. The process includes forming unclosed tubular blanks, high-frequency welding, cooling, sizing/shaping, and cutting to length.

Key Advantages

Precision engineering: between level roller jumps 0.01mm, frame vertical degree ≤0.05mm
High accuracy: steel pipe diameter and roundness error ≤0.08mm
Versatile production: can produce round, square, oval, and rectangular pipes
Customizable design to meet specific requirements

Production Process

Material (steel coil) → Uncoiler → Shear and welder → Horizontal accumulator → Forming mill → HF solid welder → Sizing mill → Rough straightening → Cut off machine → Run out table

Basic Parameters

Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter	19-76mm
Round pipe thickness	1.5-3.0mm
Square pipe size	15×15-60×60mm
Square pipe thickness	1.5-2.0mm

Applications

Curtain rails, fences, chimneys, stair handrails, furniture, window sills, stainless steel doors, and various energy supply pipes.

Our Services

On-site installation and operator training
1-year quality guarantee with life-time repair service
Pre-sales service including workshop and production output design
After-sales technical support and engineering assistance
Complete project design for stainless/carbon steel pipe production
Loading and shipping coordination

We can customize the machine according to your specific requirements. Contact us for more information about our tube mill solutions.
