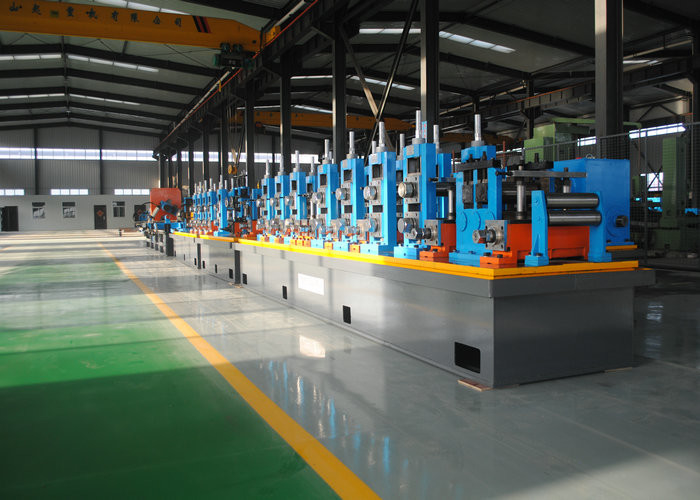

Carbon Steel ERW Tube Mill Line with Worm Gearing

Name: Carbon Steel ERW Tube Mill Line with Worm Gearing
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

Carbon Steel Erw Tube Mill Line With Worm Gearing Adjustable

Adjusting:

Worm Gearing

Worm Gearing:

Max.80m/min

Pipe Thickness:

4.0-10.0mm

Max.Thickness For Square Pipe:

0.8-3.0mm

Product Speed:

Max 50m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Keywords:

Carbon Steel Erw Tube Mill Line

Highlight:

High Light

Highlight:

erw tube mill

slitting line machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

2.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

Carbon Steel ERW Tube Mill Line With Worm Gearing Adjustable

Product Specifications

Adjusting Mechanism	Worm Gearing
Worm Gearing Speed	Max. 80m/min
Pipe Thickness Range	4.0-10.0mm
Max. Thickness for Square Pipe	0.8-3.0mm
Production Speed	Max 50m/min
Compatible Materials	Carbon Steel, Stainless Steel, Low Alloy Steel

Product Overview

The ERW pipe mill with high frequency solid welder produces round, square, and rectangular pipes at high speeds, including L, T, and Z shaped pipes. This system reduces roller costs while ensuring finished pipe quality.

Production Process

Material (steel coil)
Uncoiler
Shear and welder
Horizontal (or cage) accumulator
Forming mill
HF solid welder
Sizing mill
Rough straightening (turkey head)
Cut off machine
Run out table

Technical Specifications

This high-frequency welded tube mill line produces round tubes with diameters of 25.4-114 mm and wall thicknesses of 0.8-4.0 mm. It utilizes roll forming to process steel strip into various shapes, with high frequency induction heating to create closed shapes by squeezing weld seams together.

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Equipment Summary

This equipment specializes in producing Φ20-Φ80mm high-frequency straight seam welded pipes (wall thickness: 1-4.0mm) and corresponding square pipes (17*17-62*62mm, 1.2-3.0mm). The complete system includes components from uncoiler to fixed length cutting saw, with rolling speed adjustable based on pipe diameter and wall thickness.

A. Applicable Material

Raw material: Low-carbon steel
Thickness: 1.0-3.5mm
Width: 60-240mm
Coil I.D.: Φ450-Φ550mm
Coil O.D.: Φ800-Φ1200mm
Maximum weight: 2500kgs

B. Dimension Range

Pipe O.D.: Φ20-Φ80mm
Wall thickness: 1.0-3.5mm (square pipe: 1.2-3.0mm)
Length: 4-8m
Milling speed: 60-70m/min
High-frequency equipment power: 250 KW (Solid state)
Voltage: 380V/440V, 50HZ

C. Main Components

Uncoiler: 1 set
Shearing and butt-welder: 1 set
Accumulator: 1 set
Forming, Welding & sizing unit: 1 set
Computer-controlled tracking cutting saw: 1 set
Run-out table: 1 set
Solid-state high-frequency welder: 1 set

Our Services

On-site engineer for installation and operator training
One year quality guarantee with lifetime repair guarantee
Pre-sell services including workshop and production output design
After-sell services including installation, training, and technical support
Option for extended engineer support (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe production
Responsibility for loading and shipping

Frequently Asked Questions

What are the types of stainless steel pipe welder equipment?

Classified by use: Industrial stainless steel pipe making machine and decorative stainless steel pipe making machine.

What are the supporting parts of stainless steel equipment?

Decoiler: Holds and feeds steel strip into forming part
Forming Part: Uses scroll welded pipe dies
Welder: Performs the welding
Grinding Part: Processes weld seams
Straightening and Sizing Part: Fine-tunes pipe diameter
Cutting Part: Metal hydraulic cutting or grinding wheel cutting
Length fixed: Automatic material sizing

What are the features of FOSHAN YXH stainless steel pipe welder equipment?

Sturdy and durable construction, high precision, full automation, easy operation, continuous production, high efficiency, minimal material waste, high finished product rate, and low production cost.

Why does steel pipe leakage welding occur?

Welding torch position too high
Welding torch misalignment
Current too high causing excessive melting
Current too small for proper welding
Insufficient argon causing unfocused welding
Contamination (water or oil) on mould or steel strip

What are the production requirements for stainless steel pipe welder equipment?

A complete set includes pipe making machine, welder, mould/die/roller, polishing machines (round and square), polishing materials, and steel strip.
