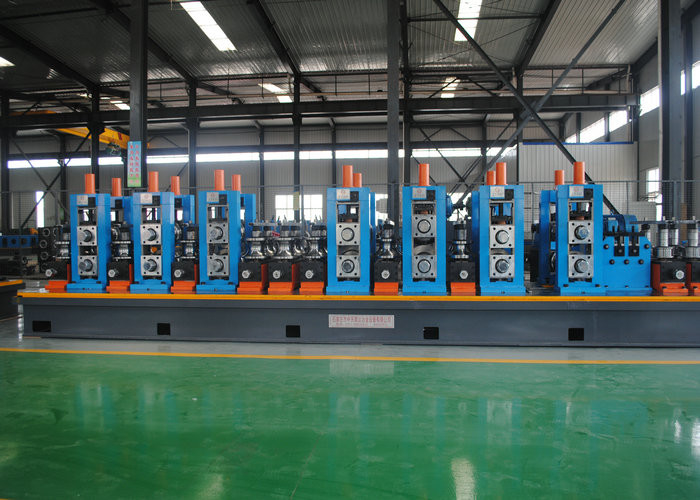

Automatic ERW Pipe Mill Line for Carbon Steel Tube Production

Name: Automatic ERW Pipe Mill Line for Carbon Steel Tube Production
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

Automatic ERW Pipe Mill Line / Carbon Steel Tube Production Line

Cutting Saw:

Friction Saw Cutting

Worm Gearing:

Max.80m/min

Pipe Thickness:

4.0-10.0mm

Max.Thickness For Square Pipe:

0.8-3.0mm

Product Speed:

Max 50m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Keywords:

Carbon Steel Tube Production Line

Highlight:

High Light

Highlight:

erw tube mill

slitting line machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

2.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

60 set per year

Product Description

Automatic ERW Pipe Mill Line / Carbon Steel Tube Production Line

Key Specifications

Attribute	Value
Cutting Saw	Friction Saw Cutting
Worm Gearing	Max. 80m/min
Pipe Thickness	4.0-10.0mm
Max. Thickness for Square Pipe	0.8-3.0mm
Product Speed	Max 50m/min
Material	Carbon steel, stainless steel, low alloy steel

Product Overview

High-frequency welded pipe machine is a straight seam welded pipe machine that differs from other pipe machines in its welding method. It uses high-frequency resistance vortex to hot melt and condense pipes. Due to its fast welding speed, it's widely used for oil pipes, natural gas pipes, and other large pipes.

Industry-Leading Features

High precision: Level roller jumps 0.01, frame vertical degree ≤0.05, steel pipe diameter and roundness error≤0.08
Incorporates Japanese technology for high accuracy requirements
Schedulable worm gear and worm adjustment with high precision
3D adjustable scraping scar with ±20° rotation capability
Turkish head push square system reduces mold weight while maintaining stable forming
Nylon damping blocks reduce impact on shaft and bearing

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Technical Specifications

Raw Material

Material Application	Hot or cold rolled steel strips, galvanized steel strips
Material Grade	Low-carbon steel, low alloy steel: δs≤345Mpa
ID of Steel Strips	Φ508-Φ610mm
OD of Steel Strips	Φ800-Φ2000mm
Coiler Weight	Max. 4000kg

Production Range

Pipe Type	Size Range	Thickness
Round Pipe	32-140mm	1.0-5.0mm
Square Pipe	2525-110110mm	1.0-4.0mm
Rectangular Pipe	2030-90120mm	1.0-4.0mm

Additional Specifications

H.F. Welder: GGP300Kw Solid State High Frequency Welder
Line Speed: Max. 70m/min
Tube Length: 6-12m
Cutting Accuracy: ±3mm
Electric Installed Capacity: approx. 500KW
Size of Whole Line: about 80X9m

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Our Services

On-site engineer for installation and operator training
One year quality guarantee with life guarantee repair
Comprehensive pre-sell and after-sell service
Optional extended engineer support (months to 1 year)
Complete project design for stainless/carbon steel pipe production
Responsible for loading and shipping

Frequently Asked Questions

What are the types of stainless steel pipe welder equipment?

Classified by use: Industrial stainless steel pipe making machine and Decorative stainless steel pipe making machine.

What are the supporting parts of stainless steel equipment?

Includes decoiler, forming part, welder, grinding part, straightening and sizing part, cutting part, and length fixed system.

What are the features of our stainless steel pipe welder equipment?

Sturdy and durable, high precision, full automation, easy operation, continuous production, high efficiency, less material waste, high finished product rate, and low production cost.

Why does steel pipe leakage welding occur?

Possible causes include incorrect welding torch position or alignment, improper current settings, lack of argon, or contamination of mold/steel with water/oil.

What are the production requirements for stainless steel pipe welder equipment?

Complete set includes pipe making machine, welder, mold/die/roller, polishing machines, polishing material, and steel strip.
