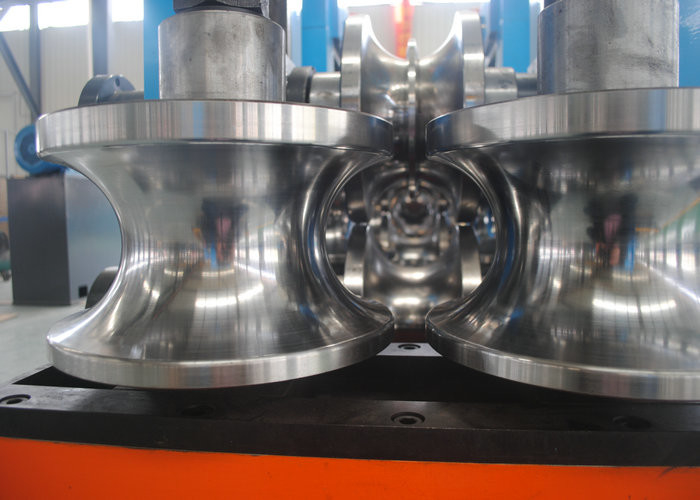

High Precision Stainless Steel Tube Mill Max 50m/min

Name: High Precision Stainless Steel Tube Mill Max 50m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

High Precision Stainless Steel Tube Mill , Product Speed Max 50m / Min

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Pipe Thickness:

4.0-10.0mm

Max.Thickness For Square Pipe:

0.8-3.0mm

Product Speed:

Max 50m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Keywords:

High Precision Steel Tube Mill

Highlight:

High Light

Highlight:

erw tube mill

slitting line machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

2.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

High Precision Stainless Steel Tube Mill

Maximum Product Speed: 50m/min | CE ISO Certified

Product Specifications

Attribute	Value
Product Name	High Precision Stainless Steel Tube Mill
Certification	CE ISO
Worm Gearing	Max. 80m/min
Pipe Thickness	4.0-10.0mm
Max. Thickness for Square Pipe	0.8-3.0mm
Product Speed	Max 50m/min
Material Compatibility	Carbon steel, stainless steel, low alloy steel

Product Description

This high-frequency welded pipe machine produces straight seam welded pipes through advanced resistance welding technology. The machine melts and condenses pipe material using high-frequency resistance vortex, making it ideal for high-volume production of pipes for oil, natural gas, and other industrial applications.

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20

Key Advantages

High precision: Level roller jumps 0.01, frame/slide clearance ≤0.02, vertical degree ≤0.05, parallel degree ≤0.1, diameter/roundness error ≤0.08
Incorporates Japanese technology for superior accuracy
Worm gear adjustment system for precise control
3D adjustable scraping scar with ±20° rotation capability
Turkish head push square system reduces mold weight while maintaining stability
Nylon damping blocks minimize impact on shafts and bearings

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Technical Specifications

Raw Material:

Material Application	Hot or cold rolled steel strips, galvanized steel strips
Material Grade	Low-carbon steel, low alloy steel: δs≤345Mpa
ID of Steel Strips	Φ508-Φ610mm
OD of Steel Strips	Φ800-Φ2000mm
Coiler Weight	Max. 4000kg

Production Range:

Round Pipe	32-140mm \| Thickness: 1.0-5.0mm
Square Pipe	25×25-110×110mm \| Thickness: 1.0-4.0mm
Rectangular Pipe	20×30-90×120mm \| Thickness: 1.0-4.0mm

Additional Specifications:

H.F. Welder: GGP300Kw Solid State High Frequency Welder
Line Speed: Max. 70m/min
Tube Length: 6-12m
Cutting Accuracy: ±3mm
Electric Installed Capacity: approx. 500KW
Size of Whole Line: about 80×9m

This high-frequency welded tube mill line produces round tubes with diameters of 25.4-114mm and wall thickness of 0.8-4.0mm. Utilizing roll forming technology and high-frequency induction heating, it creates section material of various diameters and sizes. Advanced aperture technology, PLC automatic control system, and digital speed-regulating unit ensure reliable operation and easy maintenance.

Our Services

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair support
Comprehensive pre-sale and after-sale services including workshop design and production planning
Option for extended engineer support (months to 1 year) to optimize output and reduce waste
Complete project design services for stainless steel/carbon steel pipe production
Full responsibility for loading and shipping

Frequently Asked Questions

What are the types of stainless steel pipe welder equipment?

Classified by use: Industrial stainless steel pipe making machine and decorative stainless steel pipe making machine.

What are the supporting parts of stainless steel equipment?

Decoiler: Holds and feeds steel strip into forming section
Forming Part: Uses scroll welded pipe dies
Welder: Performs the welding operation
Grinding Part: Processes weld seams
Straightening and Sizing Part: Fine-tunes pipe diameter
Cutting Part: Hydraulic cutting or grinding wheel cutting
Length fixed: Automatic material definition

What are the features of FOSHAN YXH stainless steel pipe welder equipment?

Sturdy and durable construction, high precision, full automation, easy operation, continuous production, high efficiency, minimal material waste, high finished product rate, and low production cost.

Why does steel pipe leakage occur during welding?

Welding torch position too high
Misaligned welding torch
Excessive current causing melting
Insufficient current for proper welding
Lack of argon causing unfocused welding
Contamination (water/oil) on mold or steel strip

What are the production requirements for stainless steel pipe welder equipment?

Complete set includes pipe making machine, welder, molds/dies/rollers, polishing machines (round and square), polishing materials, and steel strip.
